Brand: Te-Co

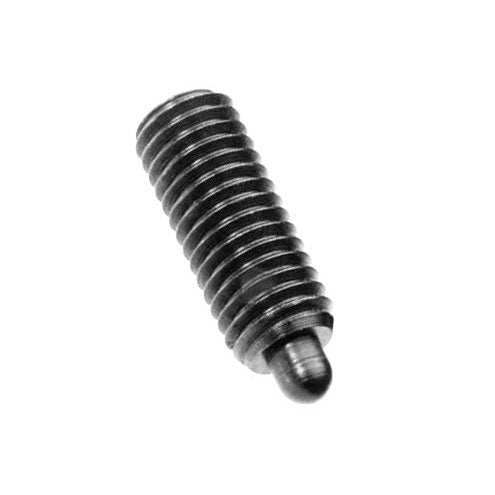

TE-CO 67090X POSI HEX PLUNGERS DELRIN NOSE M6 X 1.0 NO NYLOK
SKU: TC-67090X
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
TE-CO 67090X POSI HEX PLUNGERS DELRIN NOSE M6 X 1.0 NO NYLOK**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
TE-CO 67090X POSI HEX PLUNGERS DELRIN NOSE M6 X 1.0 NO NYLOK
Technical Specifications:
- Material:
Steel Body: 12L14 Steel
Stainless Steel Body: 303 Stainless Steel
Steel Plunger: 12L14 Steel, Case Hardened
Stainless Steel Plunger: 303 Stainless Steel - Heavy End Force: Black Oxide Finish
- Light End Force: Zinc Plated Nose
- Easy installation and removal
- Withstands high torque
- One-piece body no set screw in back

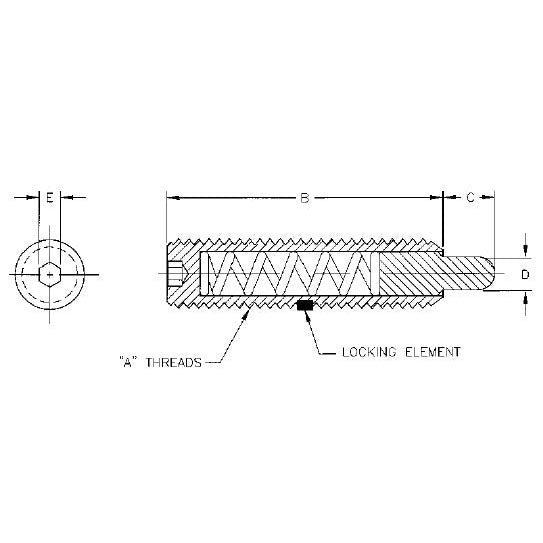

Finish | Zinc Plated Nose |
Initial End Force | 1.00 lbf |
Final End Force | 4.00 lbf |
Thread Size (A) | M6 x 1.0 |
Body Length (B) | 25.00 mm |
Projection Size (C) | 5.00 mm |
Width Across Flats (E) | 3.00 mm |
Nose Diameter (D) | 3.02 mm |
Body Material | 12L14 Steel |
Nose Material | White Delrin |
Locking Element | No |
