Brand: Te-Co

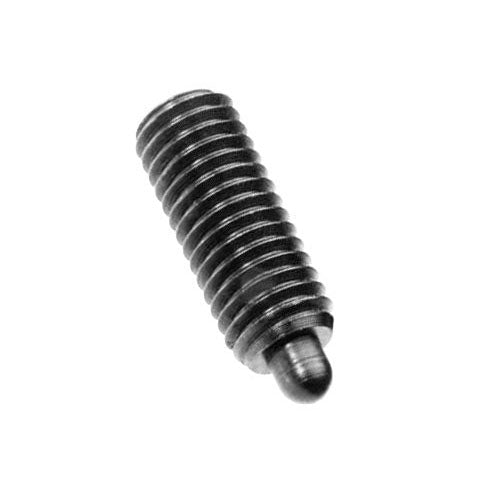

Te-Co 67089 Posi Hex Plungers Metric - Steel Body, Delrin Nose M5 X 0.8
SKU: TC-67089
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
Te-Co 67089 Posi Hex Plungers Metric - Steel Body, Delrin Nose M5 X 0.8**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Te-Co 67089 Posi Hex Plungers Metric - Steel Body, Delrin Nose M5 X 0.8
Technical Specifications:
- Material:
Steel Body: 12L14 Steel
Stainless Steel Body: 303 Stainless Steel
Steel Plunger: 12L14 Steel, Case Hardened
Stainless Steel Plunger: 303 Stainless Steel - Heavy End Force: Black Oxide Finish
- Light End Force: Zinc Plated Nose
- Easy installation and removal
- Withstands high torque
- One-piece body no set screw in back

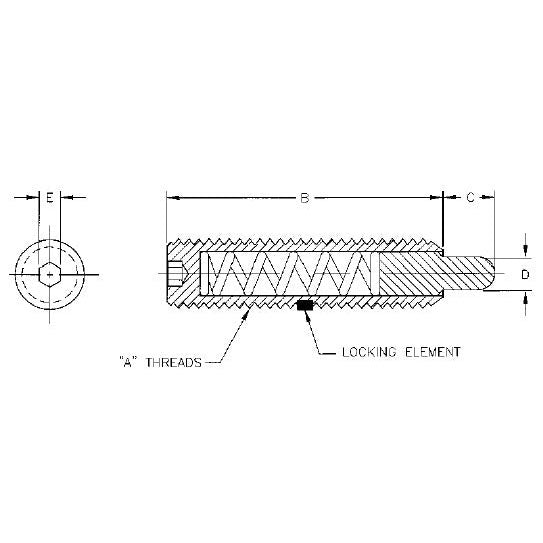

Finish | Zinc Plated Nose |
Initial End Force | 1.30 lbf |
Final End Force | 2.70 lbf |
Thread Size (A) | M5 x 0.8 |
Body Length (B) | 19.00 mm |
Projection Size (C) | 3.00 mm |
Width Across Flats (E) | 2.50 mm |
Nose Diameter (D) | 2.36 mm |
Body Material | 12L14 Steel |
Nose Material | White Delrin |
Locking Element | Yes |
