Brand: Te-Co
TE-CO 64603X KNRLD KNOB PLGR SS NON LOCK M10 X 1.5 NO NYLOK
SKU: TC-64603X
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
TE-CO 64603X KNRLD KNOB PLGR SS NON LOCK M10 X 1.5 NO NYLOK**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
TE-CO 64603X KNRLD KNOB PLGR SS NON LOCK M10 X 1.5 NO NYLOK

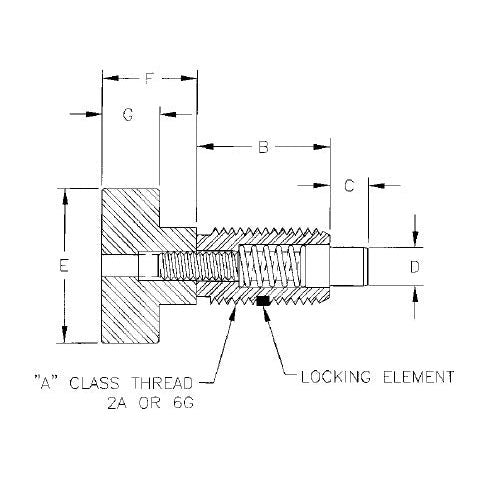

Technical Specifications:
- Contoured knob
- Unified ANSI & metric threads
Initial End Force | 1.00 lbf |
Final End Force | 8.00 lbf |
Thread Size (A) | M10 x 1.5 |
Stud Length (B) | 0.748 in 19.00 mm |
Projection Size (C) | 0.236 in 6.00 mm |
Thread Locking Element | No |
Nose Diameter (D) +.001 -.001 +.000 -.001/+.000 -.0254 | 0.197 in 5.00 mm |
Head Diameter (E) | 0.748 in 19.00 mm |
Shoulder Position (F) | 0.512 in 13.00 mm |
Head Thickness (G) | 0.315 in 8.00 mm |
Finish | Zinc Plated Yellow Chromate |
Body Material | Steel |
Handle Material | Steel |
Nose Material | Steel |
