Te-Co 64503 Stainless Steel Non-Locking Handle Knurled Knob Hand Retractable Spring Plungers M10 X 1.5
Te-Co 64503 Stainless Steel Non-Locking Handle Knurled Knob Hand Retractable Spring Plungers M10 X 1.5

Brand: Te-Co

Te-Co 64503 Stainless Steel Non-Locking Handle Knurled Knob Hand Retractable Spring Plungers M10 X 1.5

SKU: TC-64503
MPN: 64503

  • Save $14.53
Shipping calculated at checkout.
Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $100 minimum for all Te-Co product orders*

Short Description

Te-Co 64503 Stainless Steel Non-Locking Handle Knurled Knob Hand Retractable Spring Plungers M10 X 1.5
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

Te-Co 64503 Stainless Steel Non-Locking Handle Knurled Knob Hand Retractable Spring Plungers M10 X 1.5

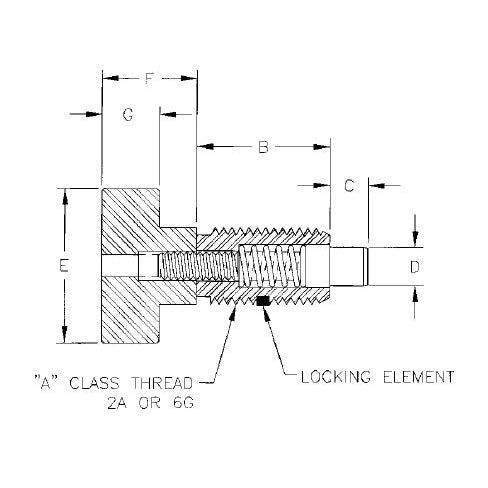

Technical Specifications:
  • Contoured knob
  • Unified ANSI & metric threads

Initial End Force
 1.00 lbf
Final End Force
 8.00 lbf
Thread Size (A)
 M10 x 1.5
Stud Length (B)
 0.748 in
19.00 mm
Projection Size (C)
 0.236 in
6.00 mm
Thread Locking Element
Yes
Nose Diameter (D) +.001 -.001 +.000 -.001/+.000 -.0254
 0.197 in
5.00 mm
Head Diameter (E)
 0.748 in
19.00 mm
Shoulder Position (F)
 0.512 in
13.00 mm
Head Thickness (G)
 0.315 in
8.00 mm
Body Material
 Stainless Steel
Handle Material
 Stainless Steel
Nose Material
 Stainless Steel
