Brand: Te-Co
TE-CO 64201X L HANDLE PLGR SS LOCKING M6 X 1.0 NO NYLOK
SKU: TC-64201X
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
TE-CO 64201X L HANDLE PLGR SS LOCKING M6 X 1.0 NO NYLOK**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
TE-CO 64201X L HANDLE PLGR SS LOCKING M6 X 1.0 NO NYLOK
Technical Specifications:
- Plunger can be completely withdrawn intothe body and locked into a retracted position
- Chamfered plunger for easy alignment
- Built in drive wrench for rapid installationand alignment

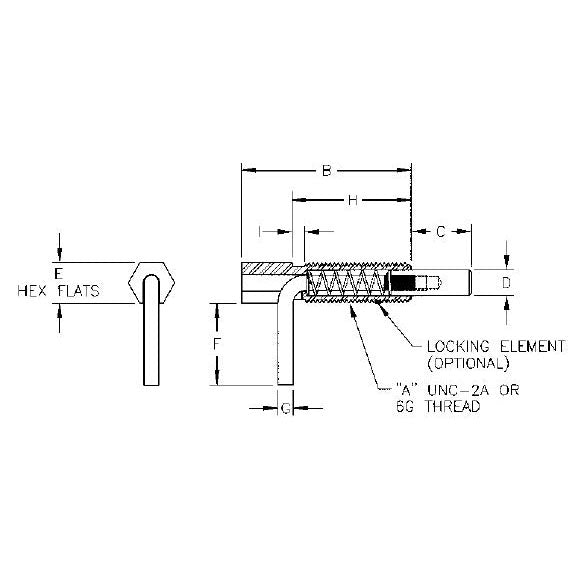

Initial End Force | 0.50 lbf |
Final End Force | 2.50 lbf |
Thread Size (A) | M6 x 1.0 |
Body Length (B) | 1.260 in 32.00 mm |
Projection Size (C) | 0.390 in 9.906 mm |
Thread Locking Element | No |
Nose Diameter (D) | 0.157 in 3.9878 mm |
Width Across Flats (E) | 0.236 in 6.00 mm |
Lever Length (F) | 0.500 in 12.70 mm |
Lever Diameter (G) | 0.093 in 2.3622 mm |
Stud Length (H) | 0.760 in 19.30 mm |
Thread Position (I) | 0 in 0 mm |
Body Material | Stainless Steel |
