Brand: Te-Co

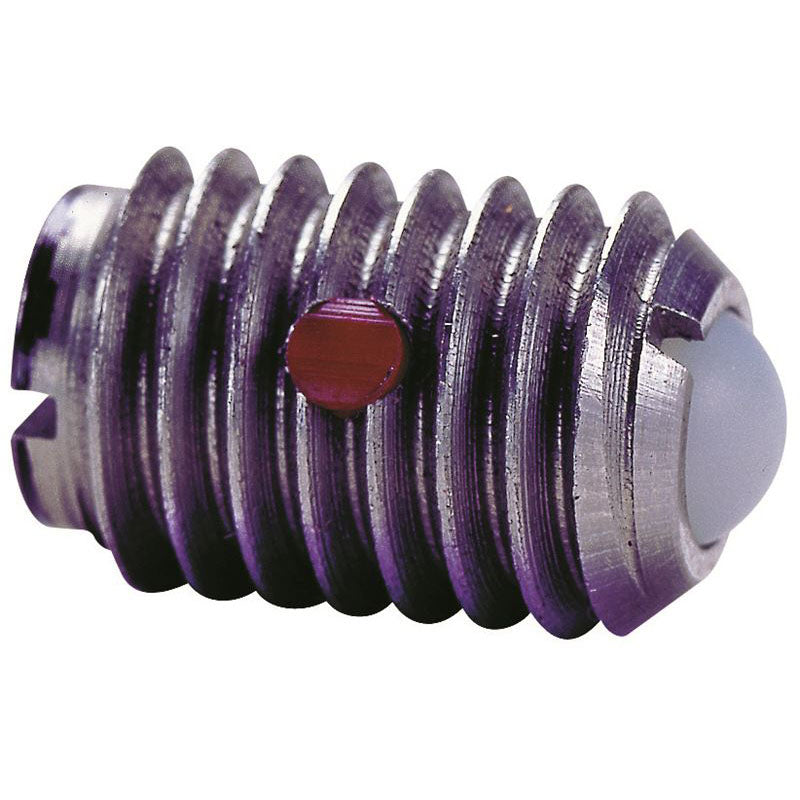

Te-Co 64067 Ball Plungers Metric - Stainless Steel Body, Nylon Ball M8X1.25
SKU: TC-64067
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
Te-Co 64067 Ball Plungers Metric - Stainless Steel Body, Nylon Ball M8X1.25**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
TE-CO 64067 M8X1.25 SS BDY,NYL BALL HVY S. PLGR
Technical Specifications:
- Smallest and lightest spring loaded device
- Side-load tolerant
- Controlled end forces
- Screwdriver installation
- Many sizes conform to TCMAI standards
Finish | Gold |
Initial End Force | 8.95 lbf |
Final End Force | 13.40 lbf |
Thread Size (A) | M8 x 1.25 |
Body Length (B) | 0.630 in 16.00 mm |
Projection Size (C) | 0.059 in 1.50 mm |
Ball Diameter (D) | 0.196 in 5.00 mm |
Body Material | 303 Stainless Steel |
Ball Material | Nylon |
Locking Element Present | Yes |
