Brand: Te-Co

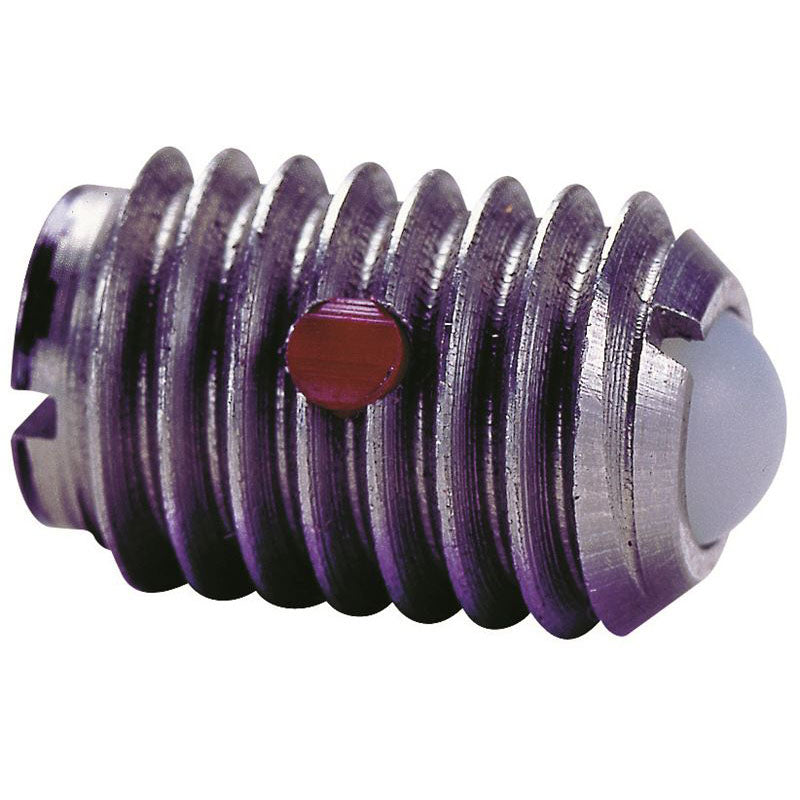

Te-Co 64062 Ball Plungers Metric - Stainless Steel Body, Nylon Ball M6X1.0
SKU: TC-64062
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
Te-Co 64062 Ball Plungers Metric - Stainless Steel Body, Nylon Ball M6X1.0**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Te-Co 64062 Ball Plungers Metric - Stainless Steel Body, Nylon Ball M6X1.0
Technical Specifications:
- Smallest and lightest spring loaded device
- Side-load tolerant
- Controlled end forces
- Screwdriver installation
- Many sizes conform to TCMAI standards
Finish | Black |
Initial End Force | 2.0 lbf |
Final End Force | 2.90 lbf |
Thread Size (A) | M6 x 1.0 |
Body Length (B) | 0.551 in 14.00 mm |
Projection Size (C) | 0.039 in 1.00 mm |
Ball Diameter (D) | 0.138 in 3.50 mm |
Body Material | 303 Stainless Steel |
Ball Material | Nylon |
Locking Element Present | Yes |
