Brand: Te-Co

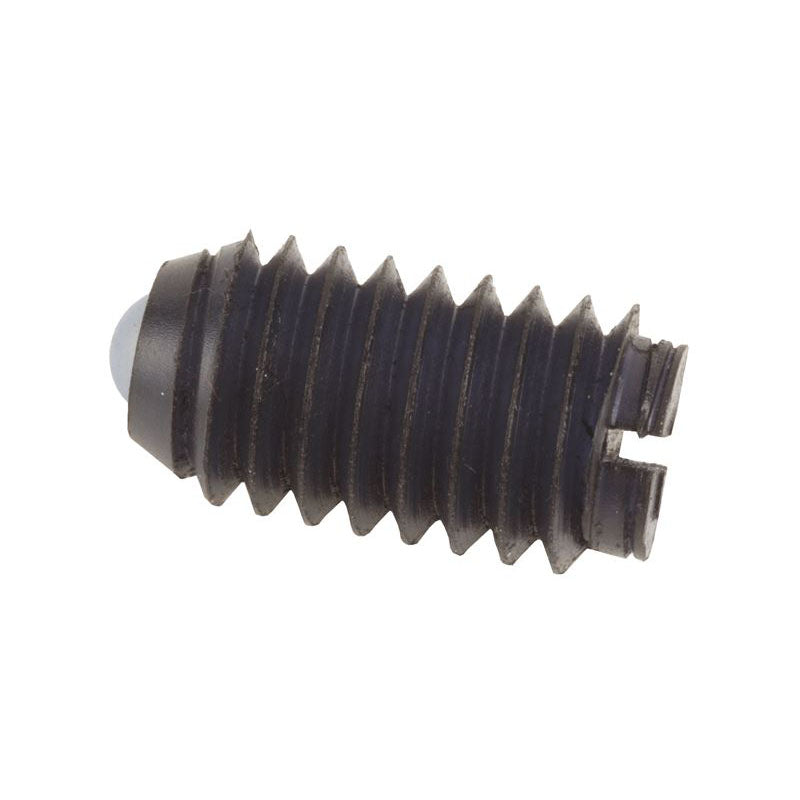

Te-Co 63972 Ball Plungers Metric - Steel Body, Nylon Ball M12 X 1.75
SKU: TC-63972
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
Te-Co 63972 Ball Plungers Metric - Steel Body, Nylon Ball M12 X 1.75**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Te-Co 63972 Ball Plungers Metric - Steel Body, Nylon Ball M12 X 1.75
Technical Specifications:
- Smallest and lightest spring loaded device
- Side-load tolerant
- Controlled end forces
- Screwdriver installation
- Many sizes conform to TCMAI standards
Finish | Zinc |
Initial End Force | 2.25 lbf |
Final End Force | 4.50 lbf |
Thread Size (A) | M12 x 1.75 |
Body Length (B) | 0.866 in 22.00 mm |
Projection Size (C) | 0.098 in 2.50 mm |
Ball Diameter (D) | 0.315 in 8.00 mm |
Body Material | 12L14 Steel |
Ball Material | Nylon |
Locking Element Present | Yes |
