Brand: Te-Co

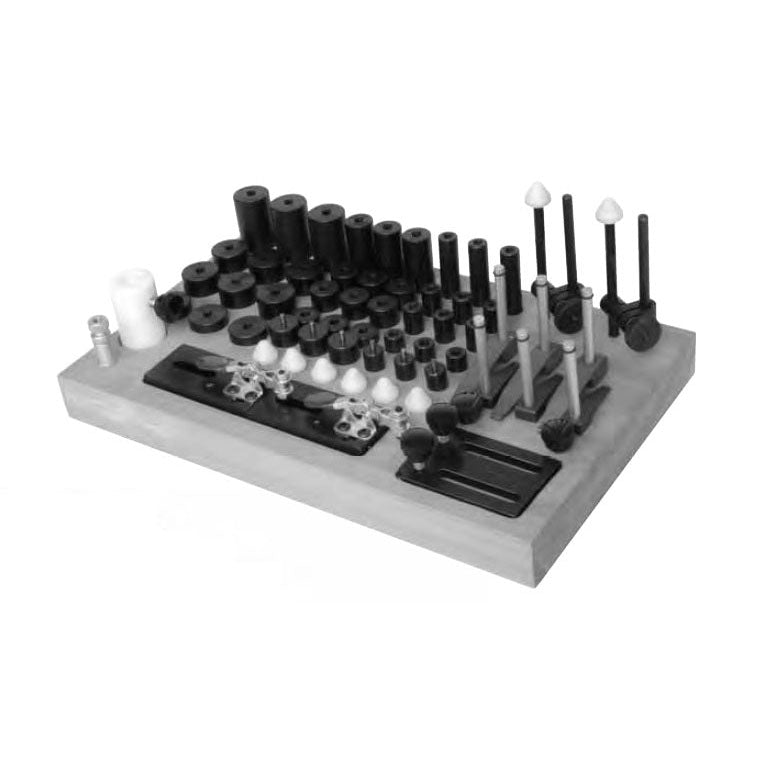

TE-CO 63302 COMPREHENSIVE KIT - M8 X 1.25

SKU: TC-63302
MPN: 63302

  • $1,904.47
    Unit price per
  • Save $10.53
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


*Please note, there is a $100 minimum for all Te-Co product orders*

Short Description

TE-CO 63302 COMPREHENSIVE KIT - M8 X 1.25
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

TE-CO 63302 COMPREHENSIVE KIT - M8 X 1.25


Technical Specifications:
  • Provides an accurate fixturing base for workpieces on horizontal and multi-axis machining centers.
  • Provide a locating and mounting base for fixture
  • Material: One-piece stress relieved class 40 Meehanite cast iron or equivalent.
  • Base and upright thickness are milled flat, parallel, and square to .001 in 12".
  • T-Columns are provided with the standard DIN and JIS mounting configuration.
  • T-Columns are plain, without a grid pattern or holes, on all four sides.
  • Grid patterns, non-standard mounting configurations, and special sizes are available and will be quoted upon request.
  • TE-CO supports these products with a full line of tooling components for your fixturing needs.
  • Hoist rings are also available for proper material handling.

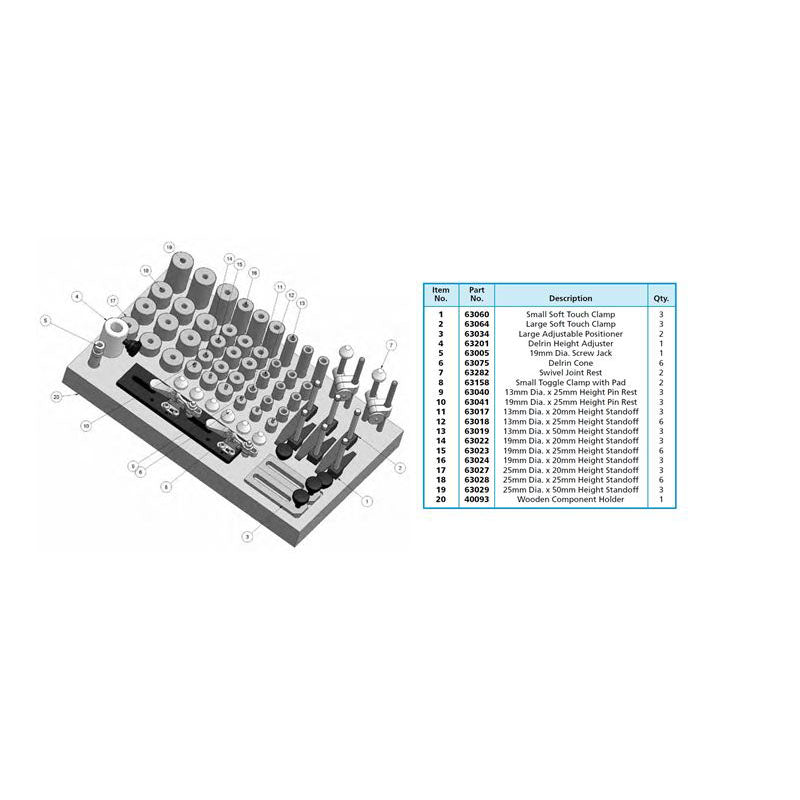

Content
63060 - Small Soft Touch Clamp - 3 pcs.
63064 -Large Soft Touch Clamp - 3 pcs.
63034 - Large Adjustable Positioner - 2 pcs.
63201 - Delrin Height Adjuster - 1 pcs.
63005 - 19mm Dia. Screw Jack - 1 pcs.
63075 - Delrin Cone - 6 pcs.
63082 - Swivel Joint Rest - 2 pcs.
63158 - Small Toggle Clamp with Pad - 2 pcs.
63040 - 13mm Dia. x 25mm Height Pin Rest - 3 pcs.
63041 - 19mm Dia. x 25mm Height Pin Rest - 3 pcs.
63017 - 13mm Dia. x 20mm Height Standoff - 3 pcs.
63018 - 13mm Dia. x 25mm Height Standoff - 6 pcs.
63019 - 13mm Dia. x 50mm Height Standoff - 3 pcs.
63022 - 19mm Dia. x 20mm Height Standoff - 3 pcs.
63023 - 19mm Dia. x 25mm Height Standoff - 6 pcs.
63024 - 19mm Dia. x 20mm Height Standoff - 3 pcs.
63027 - 25mm Dia. x 20mm Height Standoff - 3 pcs.
63028 - 25mm Dia. x 25mm Height Standoff - 6 pcs.
63029 - 25mm Dia. x 50mm Height Standoff - 3 pcs.
40093 - Wooden Component Holder - 1 pcs.
