Brand: Te-Co
Te-Co 58401 Stainless Steel Locking Handle Delrin® Knob Hand Retractable Spring Plungers 1/4-20
SKU: TC-58401
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
Te-Co 58401 Stainless Steel Locking Handle Delrin® Knob Hand Retractable Spring Plungers 1/4-20**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Te-Co 58401 Stainless Steel Locking Handle Delrin® Knob Hand Retractable Spring Plungers 1/4-20

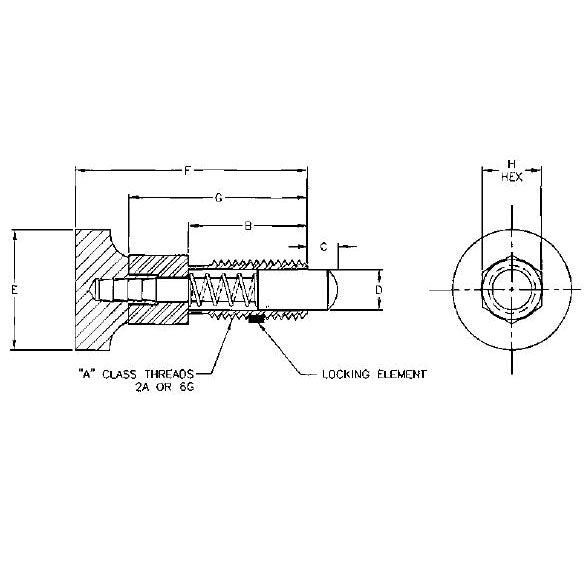

Technical Specifications:
- Contoured knob
- Unified ANSI & metric threads
Initial End Force | 0.12 lbf |
Final End Force | 0.36 lbf |
Thread Size (A) | 1/4-20 |
Body Length (F) | 0.970 in |
Stud Length (B) | 0.500 in |
Projection Size (C) | 0.130 in |
Thread Locking Element | Yes |
Nose Diameter (D) | 0.160 in |
Head Diameter (E) | 0.500 in |
Length (G) | 0.750 in |
Width Across Flats (H) | 0.250 in |
Handle Material | White Delrin |
Body Material | Stainless Steel |
Nose Material | Stainless Steel |
