Brand: Te-Co
Te-Co 58303 Steel Locking Handle Delrin® Knob Hand Retractable Spring Plungers 1/2-13
SKU: TC-58303
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
Te-Co 58303 Steel Locking Handle Delrin® Knob Hand Retractable Spring Plungers 1/2-13**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Te-Co 58303 Steel Locking Handle Delrin® Knob Hand Retractable Spring Plungers 1/2-13

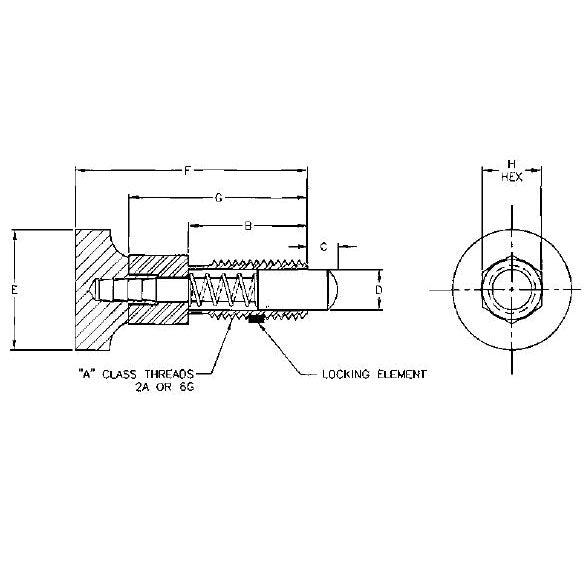

Technical Specifications:
- Contoured knob
- Unified ANSI & metric threads
Initial End Force | 0.50 lbf |
Final End Force | 1.75 lbf |
Thread Size (A) | 1/2-13 |
Body Length (F) | 1.900 in |
Stud Length (B) | 1.000 in |
Projection Size (C) | 0.250 in |
Thread Locking Element | Yes |
Nose Diameter (D) | 0.310 in |
Head Diameter (E) | 1.000 in |
Length (G) | 1.500 in |
Width Across Flats (H) | 0.500 in |
Handle Material | Black Delrin |
Body Material | Steel |
Nose Material | Case Hardened Steel |
