Brand: Te-Co

Te-Co 54611 Steel Locking Handle Knurled Knob Hand Retractable Spring Plungers 3/8-16

SKU: TC-54611
MPN: 54611

$14.83
Unit price per
Save $7.52

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $100 minimum for all Te-Co product orders*

Short Description

Te-Co 54611 Steel Locking Handle Knurled Knob Hand Retractable Spring Plungers 3/8-16
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

Te-Co 54611 Steel Locking Handle Knurled Knob Hand Retractable Spring Plungers 3/8-16

Technical Specifications:

Material:
Body: Steel or Stainless Steel
Plunger: Steel or Stainless Steel
Unified ANSI and metric threads
Hand retractable plunger can be easily engaged and withdrawn
Chamfered plunger for easy alignment
Built-in drive wrench for rapid installation and alignment
Plunger can be completely withdrawn into the body andlocked into a retracted position

Initial End Force	0.50 lbf
Final End Force	3.00 lbf

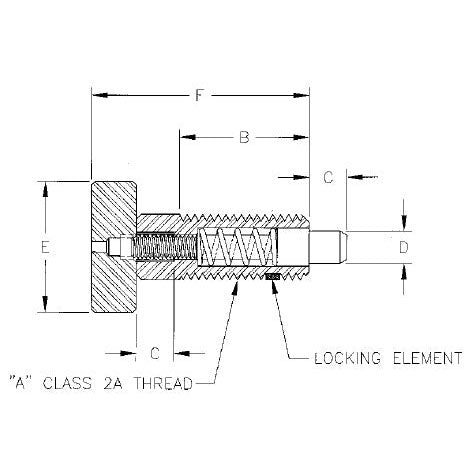

Thread Size (A)	3/8-16
Stud Length (B)	0.750 in
Projection Size (C)	0.220 in
Thread Locking Element	Yes
Nose Diameter (D) +.000/-.001	0.185 in
Head Diameter (E)	0.750 in
Shoulder Position (F)	1.260 in
Finish	Zinc Plated Yellow Chromate
Material	Steel
Handle Material	Steel
Nose Material	Steel
Weight per 100 pcs	6.00 lb
