Brand: Te-Co
Te-Co 54610X Steel Locking Handle Knurled Knob Hand Retractable Spring Plungers 1/4-20 No Nylok
SKU: TC-54610X
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
Te-Co 54610X Steel Locking Handle Knurled Knob Hand Retractable Spring Plungers 1/4-20 No Nylok**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Te-Co 54610X Steel Locking Handle Knurled Knob Hand Retractable Spring Plungers 1/4-20 No Nylok
Technical Specifications:
- Material:
Body: Steel or Stainless Steel
Plunger: Steel or Stainless Steel - Unified ANSI and metric threads
- Hand retractable plunger can be easily engaged and withdrawn
- Chamfered plunger for easy alignment
- Built-in drive wrench for rapid installation and alignment
- Plunger can be completely withdrawn into the body andlocked into a retracted position

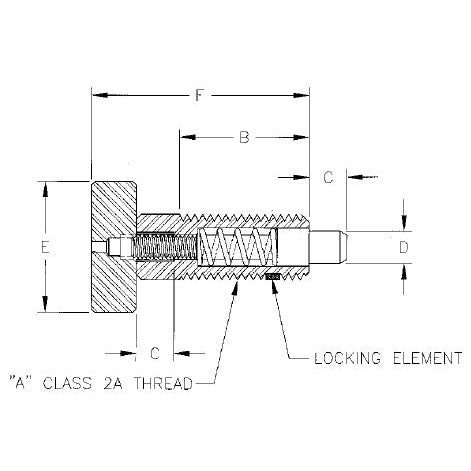

Initial End Force | 0.50 lbf |
Final End Force | 2.00 lbf |
Thread Size (A) | 1/4-20 |
Stud Length (B) | 0.400 in |
Projection Size (C) | 0.125 in |
Thread Locking Element | No |
Nose Diameter (D) +.000/-.001 | 0.123 in |
Head Diameter (E) | 0.500 in |
Shoulder Position (F) | 0.805 in |
Finish | Zinc Plated Yellow Chromate |
Material | Steel |
Handle Material | Steel |
Nose Material | Steel |
Weight per 100 pcs | 2.00 lb |
