Brand: Te-Co
Te-Co 54512 Stainless Steel Locking Handle Knurled Knob Hand Retractable Spring Plungers 1/2-13
SKU: TC-54512
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
Te-Co 54512 Stainless Steel Locking Handle Knurled Knob Hand Retractable Spring Plungers 1/2-13**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Te-Co 54512 Stainless Steel Locking Handle Knurled Knob Hand Retractable Spring Plungers 1/2-13
Technical Specifications:
- Material:
Body: Steel or Stainless Steel
Plunger: Steel or Stainless Steel - Unified ANSI and metric threads
- Hand retractable plunger can be easily engaged and withdrawn
- Chamfered plunger for easy alignment
- Built-in drive wrench for rapid installation and alignment
- Plunger can be completely withdrawn into the body andlocked into a retracted position

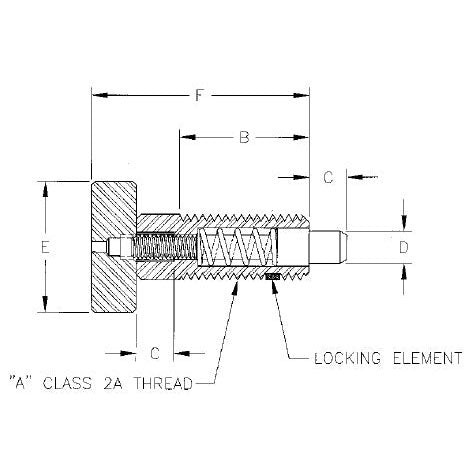

Initial End Force | 0.50 lbf |
Final End Force | 4.00 lbf |
Thread Size (A) | 1/2-13 |
Stud Length (B) | 0.650 in |
Projection Size (C) | 0.250 in |
Thread Locking Element | Yes |
D +.001 -.000 | 0.248 in |
Head Diameter (E) | 1.000 in |
Shoulder Position (F) | 1.380 in |
Material | Stainless Steel |
Handle Material | Stainless Steel |
Nose Material | Stainless Steel |
Weight per 100 pcs | 8.00 lb |
