Brand: Te-Co
Te-Co 54503X Stainless Steel Non-Locking Handle Knurled Knob Hand Retractable Spring Plungers 3/8-16 No Nylok
SKU: TC-54503X
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
Te-Co 54503X Stainless Steel Non-Locking Handle Knurled Knob Hand Retractable Spring Plungers 3/8-16 No Nylok**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Te-Co 54503X Stainless Steel Non-Locking Handle Knurled Knob Hand Retractable Spring Plungers 3/8-16 No Nylok

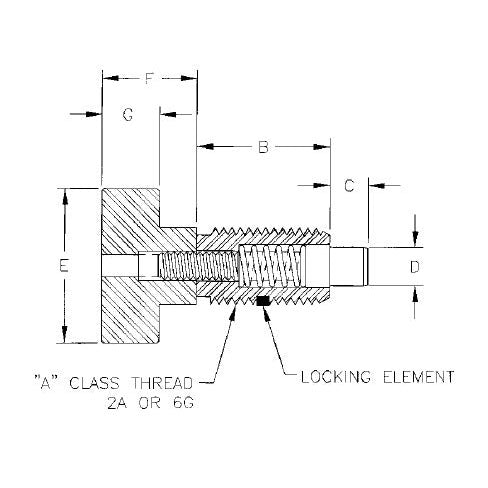

Technical Specifications:
- Contoured knob
- Unified ANSI & metric threads
Initial End Force | 1.00 lbf |
Final End Force | 8.00 lbf |
Thread Size (A) | 3/8-16 |
Stud Length (B) | 0.750 in |
Projection Size (C) | 0.218 in |
Thread Locking Element | No |
D +.001 -.000 | 0.186 in |
Head Diameter (E) | 0.750 in |
Shoulder Position (F) | 0.500 in |
Head Thickness (G) | 0.310 in |
Material | Stainless Steel |
Handle Material | Stainless Steel |
Nose Material | Stainless Steel |
Weight per 100 pcs | 6.00 lb |
