Brand: Te-Co

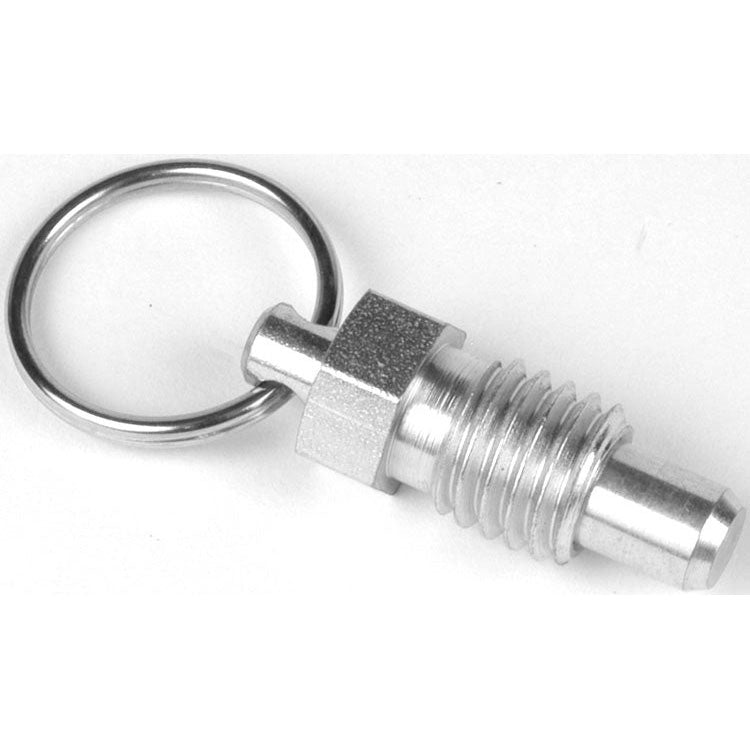

Te-Co 54402 Steel Hand Retractable Pull Ring Spring Plunger 3/8-16
SKU: TC-54402
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
Te-Co 54402 Steel Hand Retractable Pull Ring Spring Plunger 3/8-16**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Te-Co 54402 Steel Hand Retractable Pull Ring Spring Plunger 3/8-16
Technical Specifications:
- Easy to grasp handle
- Locking plunger
- Withstands side loading
- Chamfered for easy alignment
- Plunger can be completely withdrawninto the body and locked into aretracted position

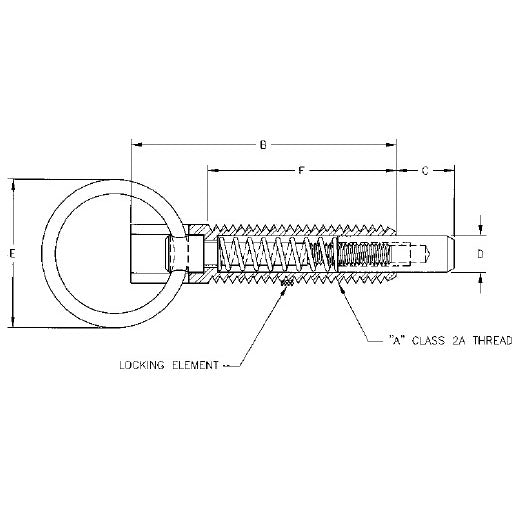

Finish | Black Oxide |
Initial End Force | 2.0 lbf |
Final End Force | 4.00 lbf |
Thread Size (A) | 3/8-16 |
Body Length (B) | 1.680 in |
Projection Size (C) | 0.375 in |
Thread Locking Element | Yes |
Nose Diameter (D) | 0.233 in |
Ring Diameter (E) | 0.980 in |
Thread Length (F) | 1.200 in |
Body Material | Steel |
Weight per 100 pcs | 4.00 lb |
