Te-Co 54362 Steel Stubby Non-Locking Lever Type Retractable Spring Plunger 1/2-13
SKU: TC-54362
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
Te-Co 54362 Steel Stubby Non-Locking Lever Type Retractable Spring Plunger 1/2-13**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Te-Co 54362 Steel Stubby Non-Locking Lever Type Retractable Spring Plunger 1/2-13
Technical Specifications:
- Designed for applications where space is limited
- Fully retractable plunger
- Chamfered plunger for easy alignment
- Zinc Plated Clear Chromate finish

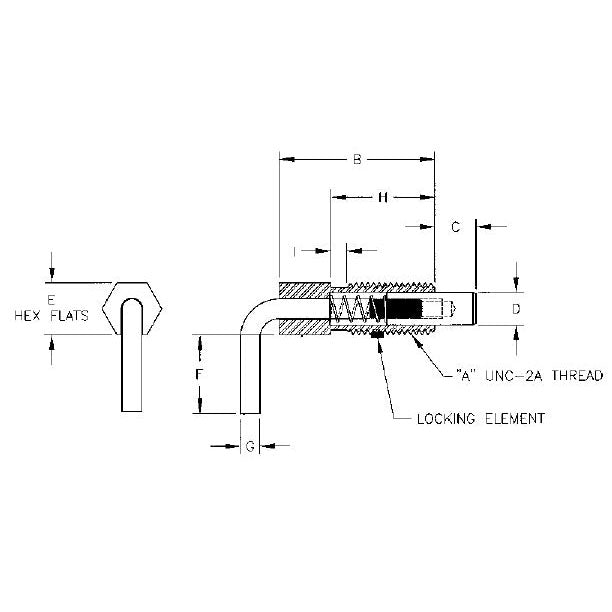

Initial End Force | 0.50 lbf |
Final End Force | 2.00 lbf |
Thread Size (A) | 1/2-13 |
Body Length (B) | 1.500 in |
Projection Size (C) | 0.400 in |
Thread Locking Element | Yes |
Nose Diameter (D) | 0.310 in |
Width Across Flats (E) | 0.500 in |
Lever Length (F) | 0.750 in |
Lever Diameter (G) | 0.190 in |
Stud Length (H) | 1.000 in |
Thread Position (I) | 0.150 in |
Finish | Zinc Plated Clear Chromate |
Body Material | Steel |
