Brand: Te-Co
TE-CO 54302X Steel Locking Handle Retractable Spring Plunger 3/8-16 NO NYLOK
SKU: TC-54302X
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
TE-CO 54302X Steel Locking Handle Retractable Spring Plunger 3/8-16 NO NYLOK**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
TE-CO 54302X Steel Locking Handle Retractable Spring Plunger 3/8-16 NO NYLOK
Technical Specifications:
- Fully retractable plunger
- Chamfered plunger for easy alignment
- Easy withdrawing and re-engagement
|
Finish
|
Black Oxide |
|
Initial End Force
|
0.75 lbf |
|
Final End Force
|
3.75 lbf |
|

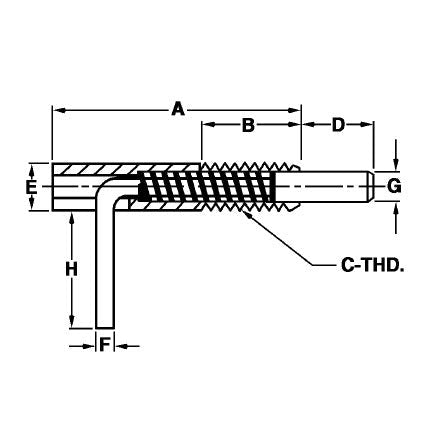

Thread Size (A)
|
3/8-16 |
|
Body Length (B)
|
2.000 in |
|
Projection Size (C)
|
0.560 in |
|
Thread Locking Element
|
No |
|
Nose Diameter (D)
|
0.234 in |
|
Width Across Flats (E)
|
0.375 in |
|
Lever Length (F)
|
0.740 in |
|
Lever Diameter (G) +.000/-.001
|
0.134 in |
|
Stud Length (H)
|
1.000 in |
|
Thread Position (I)
|
0 in |
|
Body Material
|
Steel |
