Brand: Te-Co

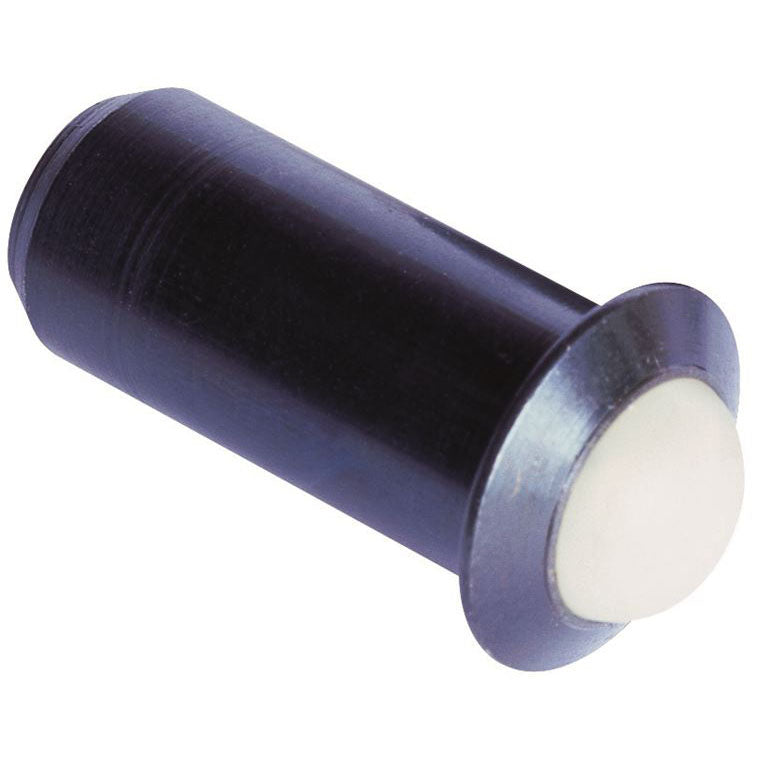

TE-CO 53765 .188 DIA. P. FIT NYL BL. PLGR 2.0-5LBS
SKU: TC-53765
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
TE-CO 53765 .188 DIA. P. FIT NYL BL. PLGR 2.0-5LBS**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
TE-CO 53765 .188 DIA. P. FIT NYL BL. PLGR 2.0-5LBS
Technical Specifications:
- Material:
Steel Body: 12L14 Steel
Stainless Steel Body: 303 Stainless Steel
Ball: 440 Stainless Steel - Black Oxide Finish Steel Only
- Ideal for installation insofter materials, such asaluminum, wood or plastic
- Sturdy shoulder providesa fixed seating positionand positively resistsdetent force (installationhole can be counterboredto recess the shoulder)
- Use when a threadedhole would be impractical
Finish | Black Oxide |
Initial End Force | 2.0 lbf |
Final End Force | 5.00 lbf |
Body Diameter (A) | 0.188 in |
Body Length (B) | 0.410 in |
Projection Size (C) | 0.058 in |
Ball Diameter (D) | 0.156 in |
Collar Diameter (E) | 0.250 in |
Collar Width (F) | 0.035 in |
Body Material | 12L14 Steel |
Ball Material | Nylon |
