Brand: Te-Co
Te-Co 53502 Short Spring Plungers - Standard Travel - Stainless Steel Body, Stainless Steel Nose 10-32
SKU: TC-53502
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
Te-Co 53502 Short Spring Plungers - Standard Travel - Stainless Steel Body, Stainless Steel Nose 10-32**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Te-Co 53502 Short Spring Plungers - Standard Travel - Stainless Steel Body, Stainless Steel Nose 10-32
Technical Specifications:
- Material:
Steel Body: 12L14 Steel
Stainless Steel Body: 303 Stainless Steel
Steel Plunger: 12L14 Steel, Case Hardened
Stainless Steel Plunger: 303 Stainless Steel - Heavy End Force: Black Oxide Finish
- Light End Force: Zinc Plated Nose
- Easy installation and removal
- Withstands high torque
- One-piece body no set screw in back
Finish | Excellent Wear Resistance |
Locking Element | Yes |
End Force | Light |
Initial End Force | 0.75 lbf |
Final End Force | 2.50 lbf |

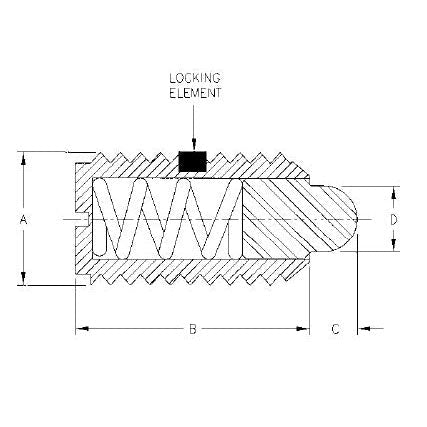

Thread Size (A) | 10-32 |
Body Length (B) | 0.469 in |
Projection Size (C) | 0.065 in |
Nose Diameter (D) +.000-.001 | 0.093 in |
Body Material | 303 Stainless Steel |
Nose Material | 303 Stainless Steel |
Weight per 100 pcs | 0.16 lb |
