Brand: Te-Co

Te-Co 52404 Short Spring Plungers - Standard Travel - Steel Body, Steel Nose 5/16

SKU: TC-52404
MPN: 52404

$5.97
Unit price per
Save $3.02

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $100 minimum for all Te-Co product orders*

Short Description

Te-Co 52404 Short Spring Plungers - Standard Travel - Steel Body, Steel Nose 5/16
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

Te-Co 52404 Short Spring Plungers - Standard Travel - Steel Body, Steel Nose 5/16

Technical Specifications:

Material:
Steel Body: 12L14 Steel
Stainless Steel Body: 303 Stainless Steel
Steel Plunger: 12L14 Steel, Case Hardened
Stainless Steel Plunger: 303 Stainless Steel
Heavy End Force: Black Oxide Finish
Light End Force: Zinc Plated Nose
Easy installation and removal
Withstands high torque
One-piece body no set screw in back

Finish	Black Oxide
Locking Element	Yes
End Force	Heavy
Initial End Force	3.75 lbf
Final End Force	15.50 lbf

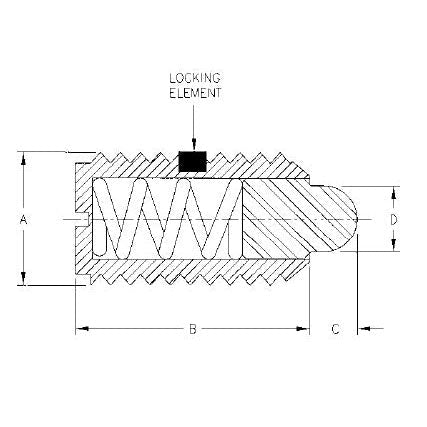

Thread Size (A)	5/16-18
Body Length (B)	0.563 in
Projection Size (C)	0.084 in
Nose Diameter (D) +.000/-.001	0.135 in
Body Material	12L14 Steel
Nose Material	Case Hardened 12L14 Steel
Weight per 100 pcs	0.60 lb
