Brand: Te-Co
Te-Co 52207 Standard Spring Plungers - Steel Body, Steel Nose 3/8-16
SKU: TC-52207
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
Te-Co 52207 Standard Spring Plungers - Steel Body, Steel Nose 3/8-16**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Te-Co 52207 Standard Spring Plungers - Steel Body, Steel Nose 3/8-16
Technical Specifications:
- Steel Body Plungers:
12L14 Steel Body, Black - Light End Force: Zinc Plated
- Heavy End Force: Black Oxide Finish
- Stainless Steel Body Plungers:
303 Stainless Steel Body - Excellent wear resistance
Finish | Zinc Plated |
Initial End Force | 2.80 lbf |
Final End Force | 7.20 lbf |

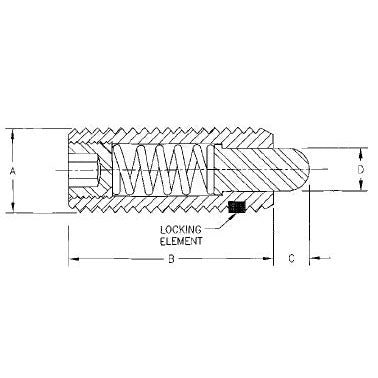

Thread Size (A) | 3/8-16 |
Body Length (B) | 1-1/8 in |
Projection Size (C) | 0.187 in |
Nose Diameter (D) +0.000/-0.001 | 0.186 in |
Width Across Flats (E) | 0.125 in |
Body Material | 12L14 Steel |
Weight per 100pcs | 2.00 lb |
Nose Material | Case Hardened 12L14 Steel |
Locking Element Present | Yes |
