Brand: Te-Co
TE-CO 35262 ID EXPANSION CLAMP 5/16-18
SKU: TC-35262
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
TE-CO 35262 ID EXPANSION CLAMP 5/16-18**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
TE-CO 35262 ID EXPANSION CLAMP 5/16-18
Technical Specifications:
- Low profile
- Ideal for secondary operations on lathe parts
- Easily machined to size on lathe or mill
- Excellent for palletized setups
- Allows more parts per workcube or fixture plate
- Clamp body made of mild steel for machinability
- Tighten with hex key or hydraulic pull cylinders

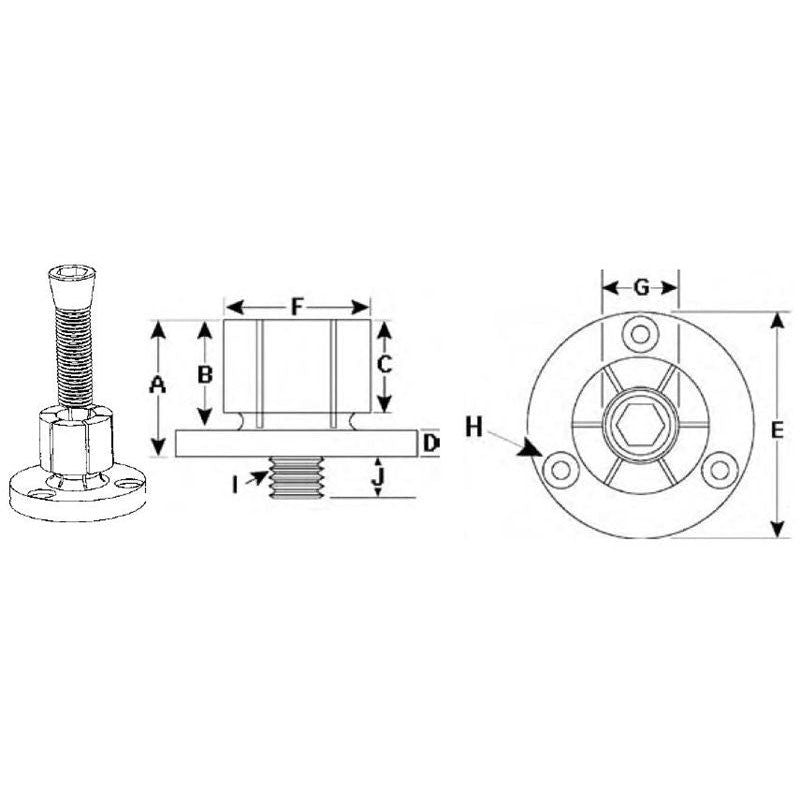

Model No. |
#2 |
Length (A) |
0.980 in |
Length (B) |
0.750 in |
Length (C) |
0.590 in |
Height (D) |
0.230 in |
Outside Diameter (E) -.000/-.002 |
1.476 in |
Diameter (F) |
0.790 in |
Bolt Diameter (G)1 |
0.530 in |
Mounting Screws (H)2 |
6-32 on 1.140 BHC |
Thread Size (I) |
5/16-18 |
Thread Length (J) |
0.560 in |
|
