Brand: Te-Co
Te-Co 33812 Nuzzler® Edge Clamps - Low Grip 1/2 X 7-1/8
SKU: TC-33812
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
Te-Co 33812 Nuzzler® Edge Clamps - Low Grip 1/2 X 7-1/8**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Te-Co 33812 Nuzzler® Edge Clamps - Low Grip 1/2 X 7-1/8
Technical Specifications:
- Clamp Material: 1018 Steel
- Black Oxide Finish

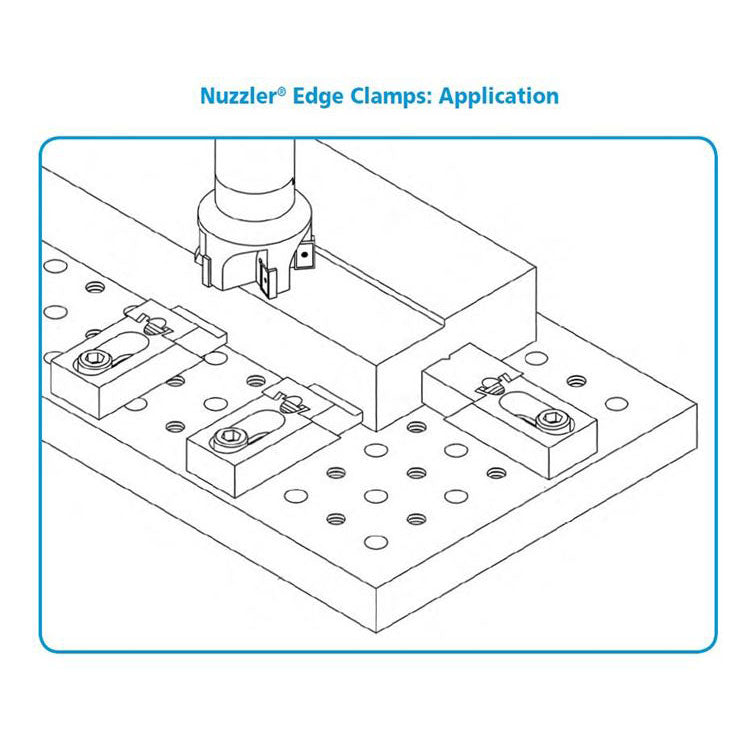

- Features a double action,adjustable nose which exertsclamping pressuresboth downward and inwardthrough a 45 degree angle.
- Noses have serrations forbetter gripping of nonfinishedor semi-finishedworkpieces
- Tapered slots prevent clampfrom sliding off the workpieceduring tightening
- Length ôAö is calculatedwith nose raised 1/8ö
- Low Profile Nose provides agreater machining clearance
- Clamp Washer is includedwith each Edge Clamp

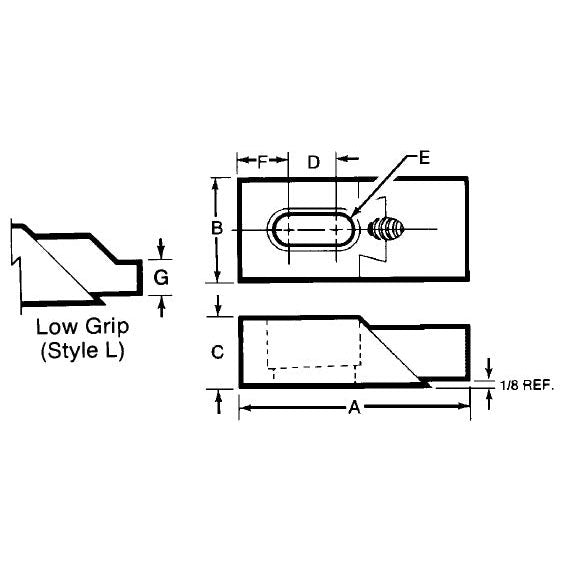

Material | 1018 Steel |
Finish | Black Oxide |
Total Length (A) | 7.125 in |
Nose Style | L |
Total Width (B) | 1.500 in |
Total Height (C) | 1.250 in |
Length (D) | 3.313 in |
Bolt Size (E) | 1/2 |
Length (F) | 1.188 in |
Nose Height (G) | 0.375 in |
Wrench Size | 1/4 in |
Weight per 100 pcs | 252.00 lb |
