Te-Co 33809 Nuzzler® Edge Clamps - Low Grip 1/2 X5-13/16
Te-Co 33809 Nuzzler® Edge Clamps - Low Grip 1/2 X5-13/16
Te-Co 33809 Nuzzler® Edge Clamps - Low Grip 1/2 X5-13/16

Brand: Te-Co

Te-Co 33809 Nuzzler® Edge Clamps - Low Grip 1/2 X5-13/16

SKU: TC-33809
MPN: 33809

  • Save $51.37
Shipping calculated at checkout.
Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $100 minimum for all Te-Co product orders*

Short Description

Te-Co 33809 Nuzzler® Edge Clamps - Low Grip 1/2 X5-13/16
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

Te-Co 33809 Nuzzler® Edge Clamps - Low Grip 1/2 X5-13/16


Technical Specifications:
  • Clamp Material: 1018 Steel
  • Black Oxide Finish

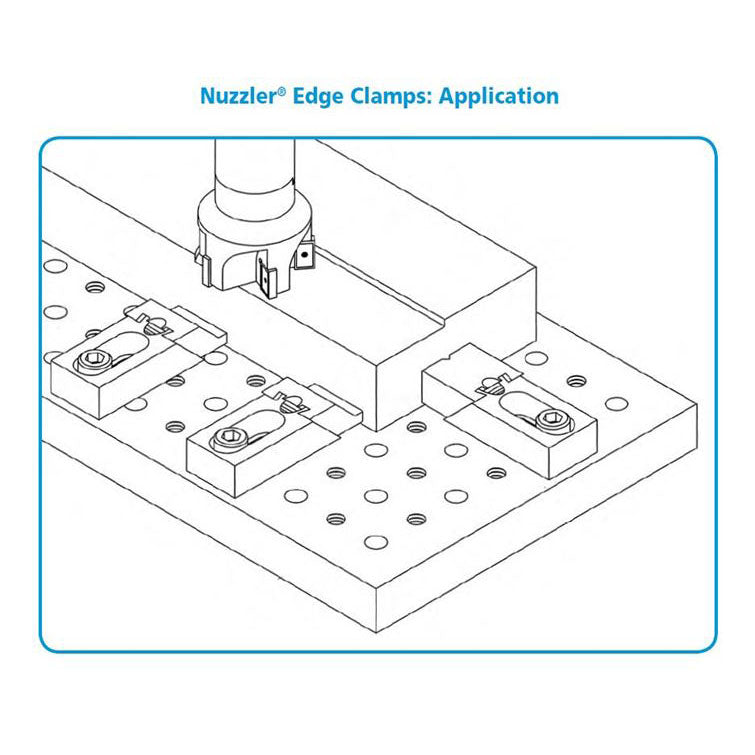

  • Features a double action,adjustable nose which exertsclamping pressuresboth downward and inwardthrough a 45 degree angle.
  • Noses have serrations forbetter gripping of nonfinishedor semi-finishedworkpieces
  • Tapered slots prevent clampfrom sliding off the workpieceduring tightening
  • Length ôAö is calculatedwith nose raised 1/8ö
  • Low Profile Nose provides agreater machining clearance
  • Clamp Washer is includedwith each Edge Clamp

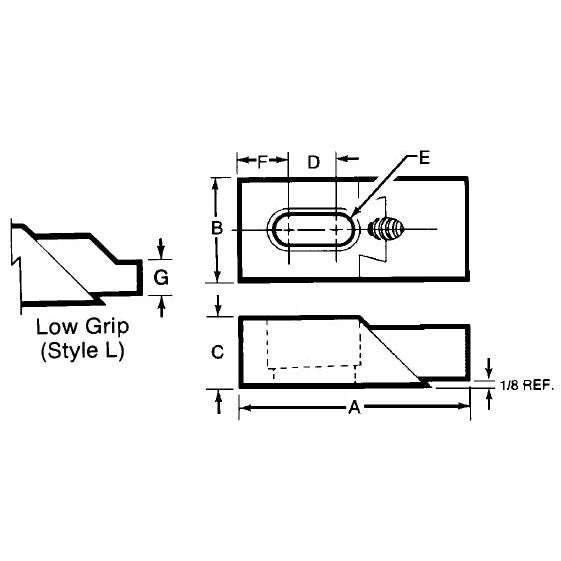

Material
 1018 Steel
Finish
 Black Oxide
Total Length (A)
 5.813 in
Nose Style
 L
Total Width (B)
 1.500 in
Total Height (C)
 1.250 in
Length (D)
 2.250 in
Bolt Size (E)
 1/2
Length (F)
 1.063 in
Nose Height (G)
 0.375 in
Wrench Size
 1/4 in
Weight per 100 pcs
 207.00 lb
