Brand: Te-Co
Te-Co 31121 Hand Knob Head Swivel Screw Clamp 1/4-20
SKU: TC-31121
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
Te-Co 31121 Hand Knob Head Swivel Screw Clamp 1/4-20**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Te-Co 31121 Hand Knob Head Swivel Screw Clamp 1/4-20
Technical Specifications:
- Material:
Body: 4140 Steel
Ball: 52100 Steel - Black oxide finish on all surfaces not qualified
- Case hardened
- Self-aligning gripper ball enables rest padto effectively support and position roughor uneven workpiece surfaces
- Gripper ball swivels 10 degrees in any direction

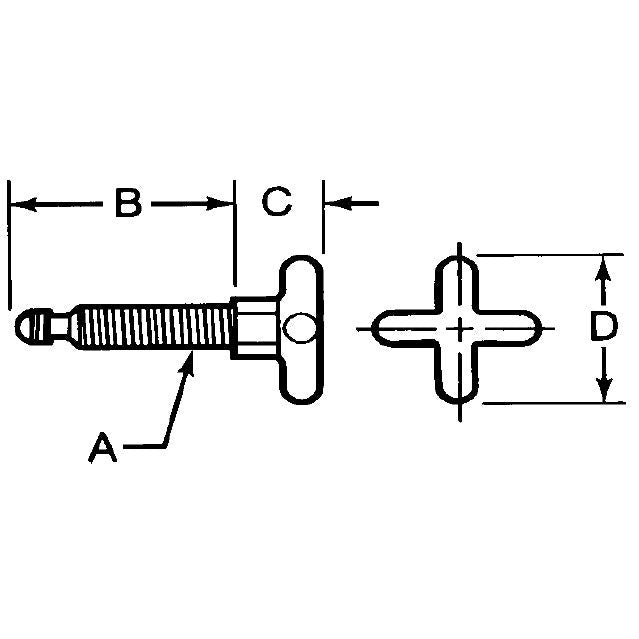

Material | 12L14 Steel |
Finish | Black Oxide |
Thread Size (A) | 1/4-20 |
Length (B) | 1.469 in |
Knob Thickness (C) | 0.750 in |
Total Width (D) | 1.125 in |
Use with Small Pad | 31501 |
Use with Large Pad | 31601 |
Weight per 100 pcs | 5.00 lb |
