Brand: Te-Co
Te-Co 11123 Metric Tapped Hole Location Gages M10 X 1.50
SKU: TC-11123
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
Te-Co 11123 Metric Tapped Hole Location Gages M10 X 1.50**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Te-Co 11123 Metric Tapped Hole Location Gages M10 X 1.50
Technical Specifications:
- Material:
Body: 52100 Steel
Collar:12L14 Steel - Black oxide finish on collar only
- Two piece construction
- Use to accurately measure the distance between two tapped holes in a workpiece
- Shaft size is the same diameter on all gages to simplify calculation of the hole spread
All diameters are concentric within .0002 T.I.R. - English:
Thread Class: 3A
Left-hand thread, helicoil, or other non-standard gages quoted upon request - Metric:
Thread Class: 6G
ISO metric fine pitch thread, left-hand thread, helicoil, or other non-standard gages quoted upon request

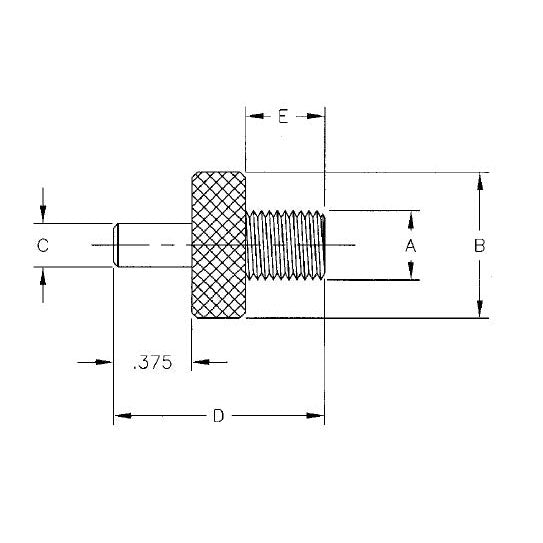

Thread A | M10 x 1.50 |
Diameter B | 12.70 mm |
Diameter C | 6.35 mm |
D | 28.00 mm |
E | 12.70 mm |
Weight per 100 pcs. | 4.50 lb |
