Brand: Te-Co

Te-Co 11113 Metric Tapped Hole Location Gages M6.0 X 1.0

SKU: TC-11113
MPN: 11113

  • $153.49
    Unit price per
  • Save $11.86
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


*Please note, there is a $100 minimum for all Te-Co product orders*

Short Description

Te-Co 11113 Metric Tapped Hole Location Gages M6.0 X 1.0
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

Te-Co 11113 Metric Tapped Hole Location Gages M6.0 X 1.0


Technical Specifications:
  • Material:
    Body: 52100 Steel
    Collar:12L14 Steel
  • Black oxide finish on collar only
  • Two piece construction
  • Use to accurately measure the distance between two tapped holes in a workpiece
  • Shaft size is the same diameter on all gages to simplify calculation of the hole spread
    All diameters are concentric within .0002 T.I.R.
  • English:
    Thread Class: 3A
    Left-hand thread, helicoil, or other non-standard gages quoted upon request
  • Metric:
    Thread Class: 6G
    ISO metric fine pitch thread, left-hand thread, helicoil, or other non-standard gages quoted upon request

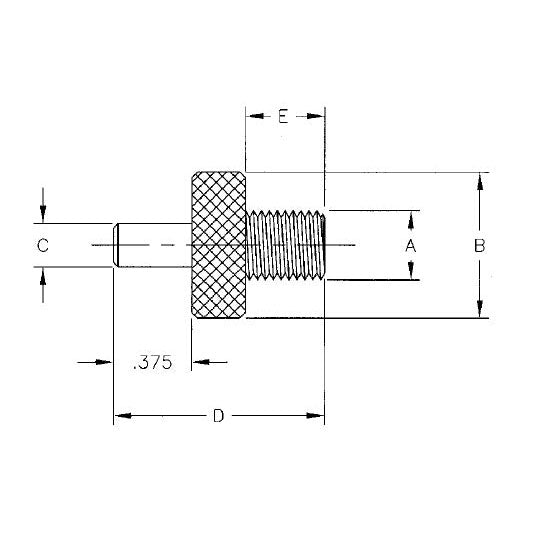

Thread A
M6 x 1.00
Diameter B
9.53 mm
Diameter C
6.35 mm
D
22.00 mm
E
6.35 mm
Weight per 100 pcs.
1.50 lb
