Brand: Te-Co
TE-CO 10306 Tapped Hole Location Gages UNC 1/2-13
SKU: TC-10306
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $100 minimum for all Te-Co product orders*
Short Description
TE-CO 10306 Tapped Hole Location Gages UNC 1/2-13**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
TE-CO 10306 Tapped Hole Location Gages UNC 1/2-13
Technical Specifications:
- Material:
Body: 52100 Steel
Collar:12L14 Steel - Black oxide finish on collar only
- Two piece construction
- Use to accurately measure the distance between two tapped holes in a workpiece
- Shaft size is the same diameter on all gages to simplify calculation of the hole spread
All diameters are concentric within .0002 T.I.R. - English:
Thread Class: 3A
Left-hand thread, helicoil, or other non-standard gages quoted upon request - Metric:
Thread Class: 6G
ISO metric fine pitch thread, left-hand thread, helicoil, or other non-standard gages quoted upon request

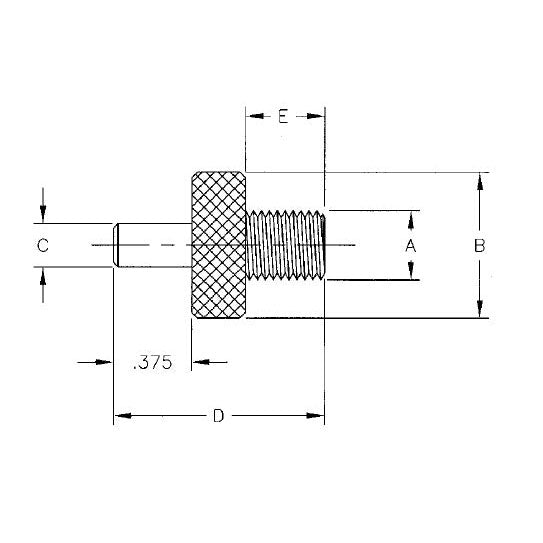

Thread A |
1/2-13 |
Diameter B |
0.875 in |
Diameter C |
0.250 in |
D |
1.000 in |
E |
0.375 in |
Weight per 100 pcs. |
6.00 lb |
