Brand: Ingersoll Cutting Tools

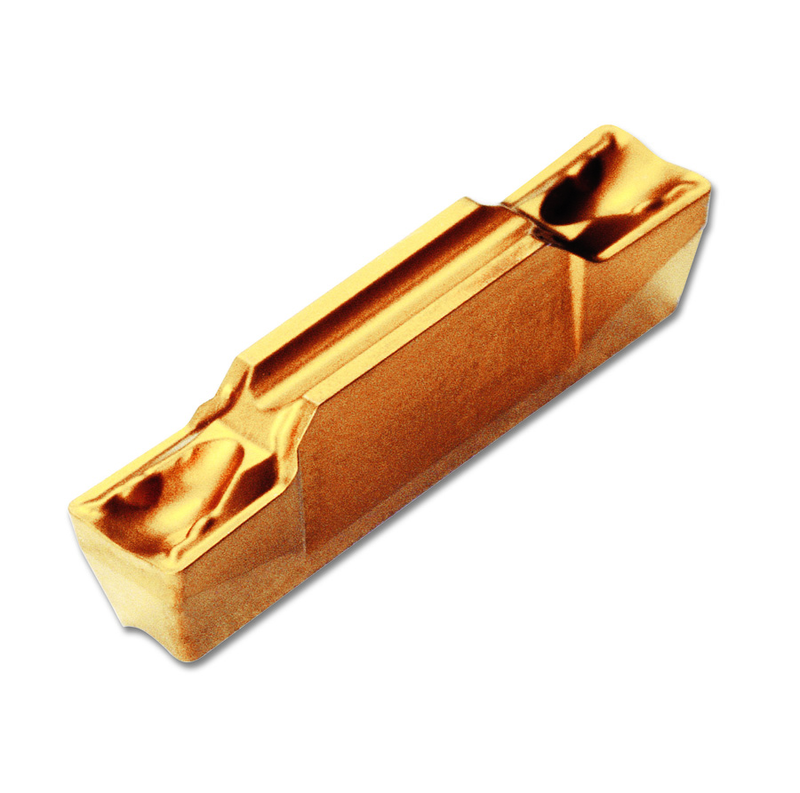

Ingersoll Cutting Tools IC046400404 TDXU4E-0.4 TT7220
SKU: FTS-IC046400404
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Ingersoll 6400404 TDXU4E-0.4 TT7220Full Description
| Cutting Width (CW) | 0.157" | Grade | TT7220 |
| Corner Radius (RE) | 0.016" | Application | | Countersinking | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | Parting | |
| Cutting Depth Maximum (CDX) | 0.748" | Insert Seat Size Code (SSC) | 4 |
| Clearance Angle Major (AN) | 7 Degrees | Measurement Type | Inch |
| Insert Thickness (S) | 0.185" | Min. Grooving Feed (fg(min)) | 0.0035" |
| Insert Length (INSL) | 0.79" | Body Material | Carbide |
| Coating | TiCN |
