Brand: Tungaloy

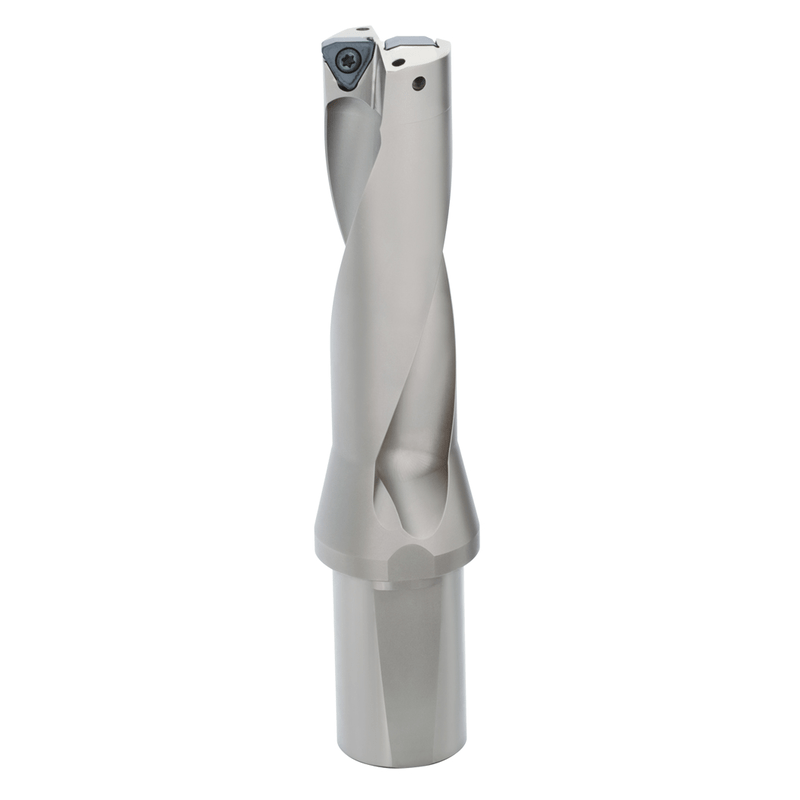

Tungaloy TG256985613 TDSU1187-02
SKU: FTS-TG256985613
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy 6985613 TDSU1187-02Full Description
| Cutting Diameter (DC) | 1.187" | Overall Length (OAL) | 6.122" |
| Usable Length (LU) | 2.417" | Flange Diameter (DF) | 1.575" |
| Application | | General Drilling | | Point Length (PL) | 0.043" |
| Connection Diameter Machine Side (DCONMS) | 1-1/4" | Measurement Type | Inch |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | WWMU08X408R-DJ |
| Shank Length (LS) | 2.28" | Body Material | Steel |
| Functional Length (LF) | 3.799" | Decimal Equivalent | 1.187" |
Family Description
"TungSix-Drill" Indexable insert drills, L/D=2, Whistle notch
