Brand: Ingersoll Cutting Tools

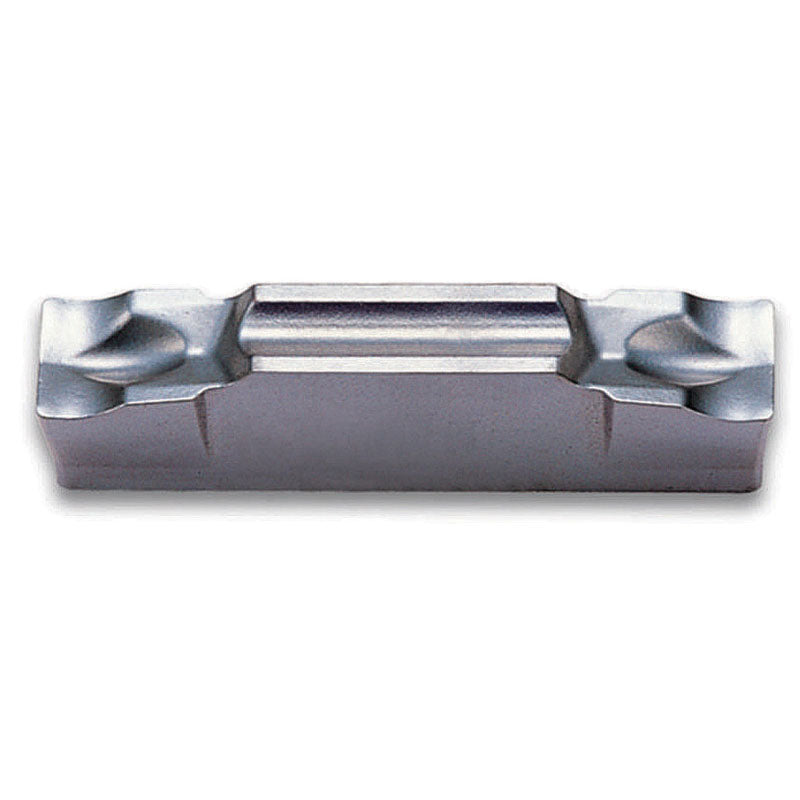

Ingersoll Cutting Tools IC046000326 TDJ5 K10
SKU: FTS-IC046000326
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Ingersoll 6000326 TDJ5 K10Full Description
| Cutting Width (CW) | 0.197" | Application | | Ext. Grooving | Parting | |
| Corner Radius (RE) | 0.012" | Insert Size | 5 |
| Insert Thickness (S) | 0.205" | Number of Cutting Edges | 2 |
| Insert Length (INSL) | 0.98" | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.945" | Clearance Angle Major (AN) | 7 Degrees |
| Grade | K10 | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Insert Seat Size Code (SSC) | 5 |
Family Description
J-type Chipbreakers Not for lateral Turning
