Brand: Ingersoll Cutting Tools

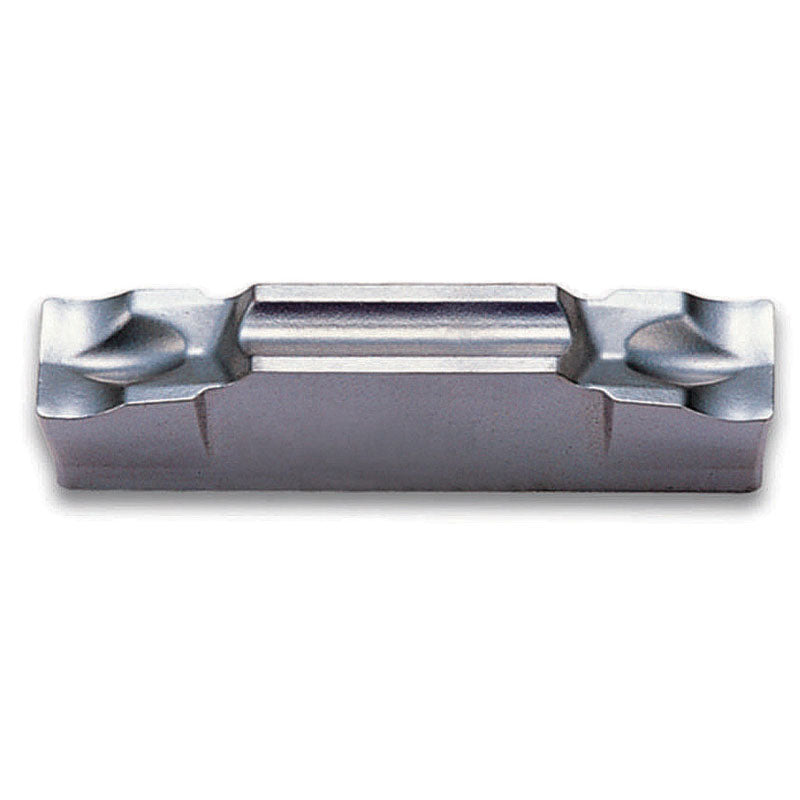

Ingersoll Cutting Tools IC046000171 TDJ2 TT7220
SKU: FTS-IC046000171
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Ingersoll 6000171 TDJ2 TT7220Full Description
| Cutting Width (CW) | 0.079" | Application | | Ext. Grooving | Parting | |
| Corner Radius (RE) | 0.008" | Insert Size | 2 |
| Insert Thickness (S) | 0.185" | Number of Cutting Edges | 2 |
| Insert Length (INSL) | 0.79" | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.748" | Clearance Angle Major (AN) | 7 Degrees |
| Coating | TiCN | Body Material | Carbide |
| Grade | TT7220 | Insert Seat Size Code (SSC) | 2 |
| Cutting Direction (HAND) | Neutral |
Family Description
J-type Chipbreakers Not for lateral Turning
