Brand: Tungaloy

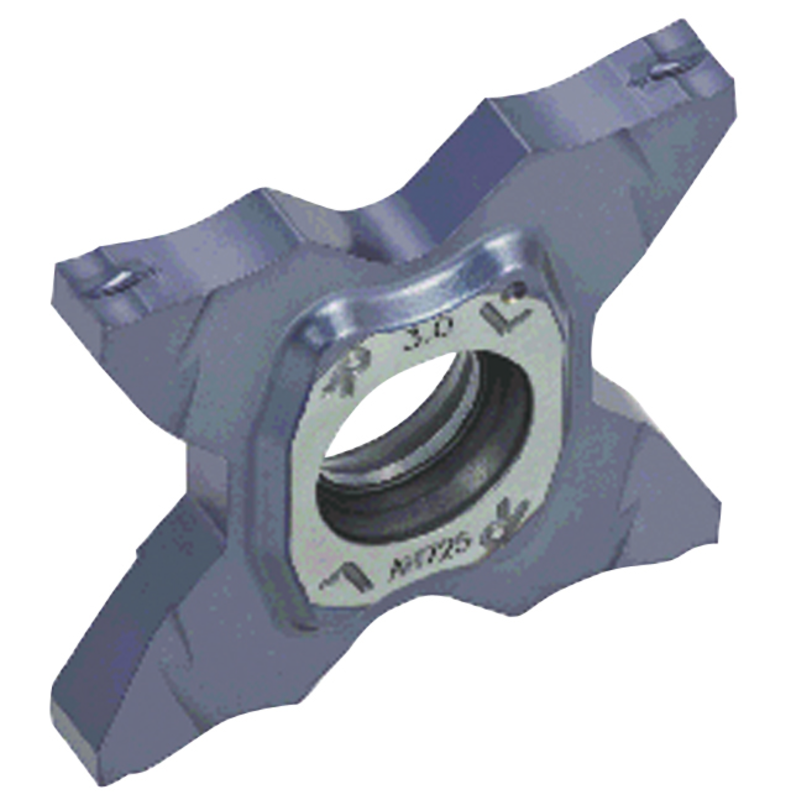

Tungaloy TG556883394 TCS27-200-100 AH725
SKU: FTS-TG556883394
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy 6883394 TCS27-200-100 AH725Full Description
| Cutting Width (CW) | 0.079" | Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Corner Radius (RE) | 0.0394" | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 0.118" |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AH725 | Body Material | Carbide |
| Application | | Inserts | |
Family Description
Precision grooving inserts with 4 cutting edges (With full radius). General purpose type.
For the relation between groove depth (T) and max diameter (D max), click on "More Info".
