Brand: Ingersoll Cutting Tools

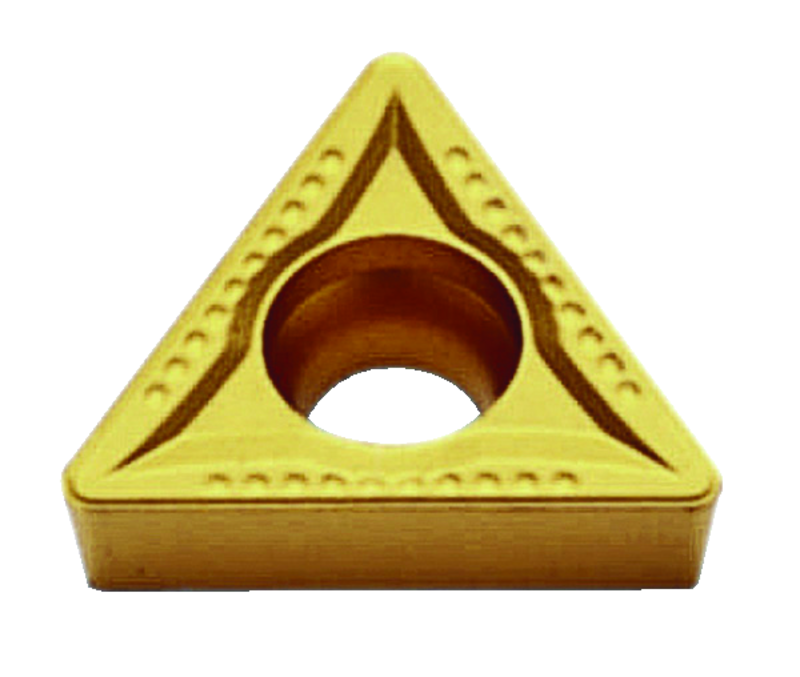

Ingersoll Cutting Tools IC065520647 TCMT32.52MT TT9235
SKU: FTS-IC065520647
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Ingersoll 5520647 TCMT32.52MT TT9235Full Description
| Insert Style | TCMT | Fixing Hole Diameter (D1) | 0.173" |
| Corner Radius (RE) | 0.031" | Min D.O.C. | 0.039" |
| Insert Size | 32.52 | Depth of Cut Maximum (APMX) | 0.197" |
| Cutting Edge Length (L) | 0.571" | Min. Turning Feed (ft(min)) | 0.004" |
| Insert Thickness (S) | 0.156" | Max. Turning Feed (ft(max)) | 0.012" |
| Inscribed Circle Diameter (IC) | 3/8" | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Series/List # | TNMG 32.52-MT |
| Grade | TT9235 | Body Material | Carbide |
