Brand: DESTACO

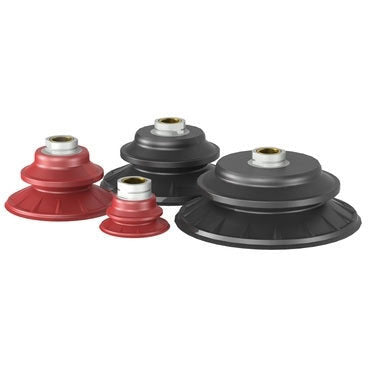

DESTACO CPI-90HT-B-60 TC/HT - ROUND TRACTION CUP 35TC 60 DURO W/502-3819 INS

SKU: DE-STA-CO-CPI-90HT-B-60
MPN: CPI-90HT-B-60

$36.08
Unit price per
Save $4.17

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Introducing the amazing DESTACO CPI-90HT-B-60 TC/HT - ROUND TRACTION CUP 35TC 60 DURO W/502-3819 INS! Experience unparalleled efficiency and reliability with these traction cups designed to eliminate sliding and increase speed. With flexible side walls and a wide skirt featuring internal traction feet, these cups are perfect for oily surfaces or destacking applications. The internal cleats provide an extra level of security for high-speed operations. Comes in 60 shore "A" hardness durometer to fit your needs. This incredible product boasts impressive holding capacities, with 13.6 kg (30.0 lbf) for horizontal dry, 9.1 kg (20.0 lbf) for horizontal wet, and a whopping 29.9 kg (66 lbf) for vertical lift. Weighing only 73.0 g (2.6 oz) and with a diameter of 88.9 mm (3.500in).

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO CPI-90HT-B-60 TC/HT - ROUND TRACTION CUP 35TC 60 DURO W/502-3819 INS

Product Details

Traction cups incorporate flexible side walls and a wide skirt with internal traction feet to prevent parts from sliding on high speed automation

For oily surface or destacking applications
Internal cleats hold parts more securely in high-speed applications
Available in 45 or 60 shore "A" hardness durometers

Holding Capacity - Horizontal Dry (kg)	13.6
Holding Capacity - Horizontal Dry (lbf)	30.0
Holding Capacity - Horizontal Wet (kg)	9.1
Holding Capacity - Horizontal Wet (lbf)	20.0
Holding Capacity - Vertical Lift (kg)	29.9
Holding Capacity - Vertical Lift (lbf)	66
Weight (g)	73.0
Weight (oz)	2.6
Diameter (mm)	88.9
Diameter (in)	3.500
Material	Nitrile
Durometer	60 (Black)
Mount	3/8 G
Temperature Range	15-59 Sec: -20° to 250°F (-29° to 121°C) 1-5 Min: 15° to 180°C (-9° to 82°C)
Chemical Resistance	Oil, water, grease, hydraulic fluid, alcohol
Shape	Round
Product Type	Traction
Cup Size	90 mm
Product Series Description	Nitrile Rubber
