Brand: DESTACO

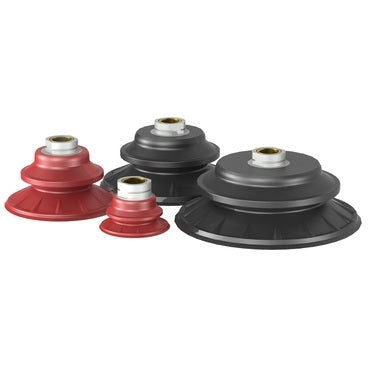

DESTACO CPI-90HT-B-45 TC/HT - ROUND TRACTION CUP TRACTION 90MM G 3/8 RED 45 DUR

SKU: DE-STA-CO-CPI-90HT-B-45
MPN: CPI-90HT-B-45

$35.38
Unit price per
Save $4.08

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Experience the unparalleled strength and performance of DESTACO CPI-90HT-B-45 TC/HT - ROUND TRACTION CUP TRACTION 90MM G 3/8 RED 45 DUR. Designed with flexible side walls, a wide skirt, and internal traction feet, these traction cups prevent parts from sliding even at high speeds. Whether you have oily surfaces or need to destack parts, our internal cleats will securely hold them in place. With a 45 shore "A" hardness durometer, our traction cups can handle any task with ease. Trust in our product to hold up to 13.6 kg (30 lbs) horizontally, 9.1 kg (20 lbs) wet, or 29.9 kg (66 lbs) vertically. And with a weight of only 73.0 g (2.6 oz), our traction cups are lightweight and easy to handle. Upgrade your automation process with DESTACO today!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO CPI-90HT-B-45 TC/HT - ROUND TRACTION CUP TRACTION 90MM G 3/8 RED 45 DUR

Product Details

Traction cups incorporate flexible side walls and a wide skirt with internal traction feet to prevent parts from sliding on high speed automation

For oily surface or destacking applications
Internal cleats hold parts more securely in high-speed applications
Available in 45 or 60 shore "A" hardness durometers

Holding Capacity - Horizontal Dry (kg)	13.6
Holding Capacity - Horizontal Dry (lbf)	30.0
Holding Capacity - Horizontal Wet (kg)	9.1
Holding Capacity - Horizontal Wet (lbf)	20.0
Holding Capacity - Vertical Lift (kg)	29.9
Holding Capacity - Vertical Lift (lbf)	66
Weight (g)	73.0
Weight (oz)	2.6
Diameter (mm)	88.9
Diameter (in)	3.500
Material	Nitrile
Durometer	45 (Red)
Mount	3/8 G
Temperature Range	15-59 Sec: -20° to 250°F (-29° to 121°C) 1-5 Min: 15° to 180°C (-9° to 82°C)
Chemical Resistance	Oil, water, grease, hydraulic fluid, alcohol
Shape	Round
Product Type	Traction
Cup Size	90 mm
Product Series Description	Nitrile Rubber
