Brand: DESTACO

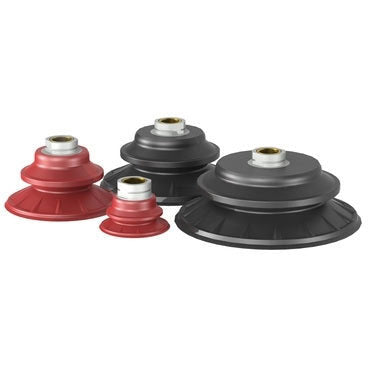

DESTACO CPI-55TC-C-45 TC/HT - ROUND TRACTION 5.5" Traction Cup; C mount; Red
SKU: DE-STA-CO-CPI-55TC-C-45
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience unbeatable holding power with the DESTACO CPI-55TC-C-45 TC/HT - ROUND TRACTION 5.5" Traction Cup; C mount; Red. Our premium product incorporates flexible side walls and a wide skirt with internal traction feet, ensuring parts stay firmly in place on high-speed automation. No more worries about oily surfaces or destacking applications, our internal cleats provide maximum security. Choose this 45 (red) shore "A" hardness durometer for the perfect fit. With an impressive holding capacity and durable Nitrile material, this traction cup is a game-changer. Lift up to 74.4 kg (164 lbs) vertically and 45.5 kg (100 lbs) horizontally, making it a versatile must-have in any work setting. Weighing only 204 g (7.2 oz) and measuring 139.7 mm (5.500 in) in diameter, it's lightweight and compact for easy use.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-55TC-C-45 TC/HT - ROUND TRACTION 5.5" Traction Cup; C mount; Red
Product Details
Traction cups incorporate flexible side walls and a wide skirt with internal traction feet to prevent parts from sliding on high speed automation
- For oily surface or destacking applications
- Internal cleats hold parts more securely in high-speed applications
- Available in 45 or 60 shore "A" hardness durometers
| Holding Capacity - Horizontal Dry (kg) | 45.5 |
| Holding Capacity - Horizontal Dry (lbf) | 100.0 |
| Holding Capacity - Horizontal Wet (kg) | 20.4 |
| Holding Capacity - Horizontal Wet (lbf) | 45.0 |
| Holding Capacity - Vertical Lift (kg) | 74.4 |
| Holding Capacity - Vertical Lift (lbf) | 164 |
| Weight (g) | 204.0 |
| Weight (oz) | 7.2 |
| Diameter (mm) | 139.7 |
| Diameter (in) | 5.500 |
| Material | Nitrile |
| Durometer | 45 (Red) |
| Mount | 1.25" Square |
| Temperature Range | 15-59 Sec: -20° to 250°F (-29° to 121°C) 1-5 Min: 15° to 180°C (-9° to 82°C) |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Shape | Round |
| Product Type | Traction |
| Cup Size | 5.50 in |
| Product Series Description | Nitrile Rubber |
