Brand: DESTACO

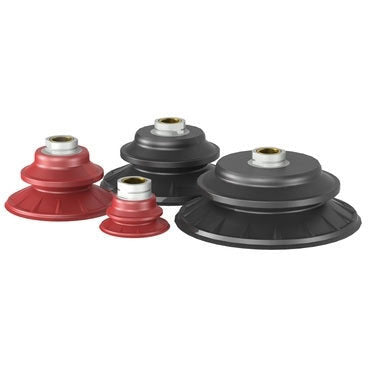

DESTACO CPI-55TC-B-60 TC/HT - ROUND TRACTION CUP TC 5.5in. B-MT BLK
SKU: DE-STA-CO-CPI-55TC-B-60
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
DESTACO CPI-55TC-B-60 TC/HT - ROUND TRACTION CUP TC 5.5in. B-MT BLKTraction cups incorporate flexible side walls and a wide skirt with internal traction feet to prevent parts from sliding on high speed automation
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-55TC-B-60 TC/HT - ROUND TRACTION CUP TC 5.5in. B-MT BLK
Product Details
Traction cups incorporate flexible side walls and a wide skirt with internal traction feet to prevent parts from sliding on high speed automation
- For oily surface or destacking applications
- Internal cleats hold parts more securely in high-speed applications
- Available in 45 or 60 shore "A" hardness durometers
Holding Capacity - Horizontal Dry (kg) | 45.5 |
Holding Capacity - Horizontal Dry (lbf) | 100.0 |
Holding Capacity - Horizontal Wet (kg) | 20.4 |
Holding Capacity - Horizontal Wet (lbf) | 45.0 |
Holding Capacity - Vertical Lift (kg) | 74.4 |
Holding Capacity - Vertical Lift (lbf) | 164 |
Weight (g) | 204.0 |
Weight (oz) | 7.2 |
Diameter (mm) | 139.7 |
Diameter (in) | 5.500 |
Material | Nitrile |
Durometer | 60 (Black) |
Mount | 3/8" NPT |
Temperature Range | 15-59 Sec: -20° to 250°F (-29° to 121°C) 1-5 Min: 15° to 180°C (-9° to 82°C) |
Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
Shape | Round |
Product Type | Traction |
Cup Size | 5.50 in |
Product Series Description | Nitrile Rubber |
