Brand: DESTACO

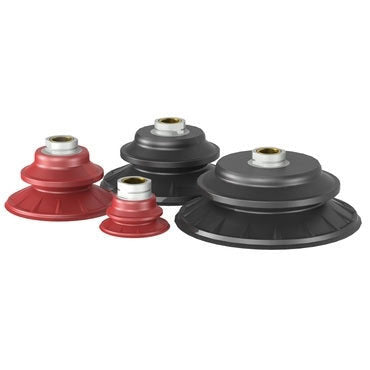

DESTACO CPI-55TC-B-45 TC/HT - ROUND TRACTION CUP TC 5.5in. B-MT RED
SKU: DE-STA-CO-CPI-55TC-B-45
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing DESTACO's CPI-55TC-B-45 TC/HT - ROUND TRACTION CUP TC 5.5in. B-MT RED - a product designed to revolutionize high speed automation and prevent parts from slipping, even on oily surfaces. With flexible side walls and internal traction feet, this cup provides a secure grip for destacking applications. It comes in 45 shore "A" hardness durometer, ensuring maximum holding capacity. Plus, the internal cleats make it perfect for high-speed applications. Experience the power of 3/8" NPT mounted, nitrile material, and a whopping 74.4kg (164lbf) vertical lift capacity. Unleash the potential of this 139.7mm (5.500in.) diameter cup, weighing only 204g (7.2oz). Get your hands on this DESTACO CPI-55TC-B-45 traction cup today!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-55TC-B-45 TC/HT - ROUND TRACTION CUP TC 5.5in. B-MT RED
Product Details
Traction cups incorporate flexible side walls and a wide skirt with internal traction feet to prevent parts from sliding on high speed automation
- For oily surface or destacking applications
- Internal cleats hold parts more securely in high-speed applications
- Available in 45 or 60 shore "A" hardness durometers
| Holding Capacity - Horizontal Dry (kg) | 45.5 |
| Holding Capacity - Horizontal Dry (lbf) | 100.0 |
| Holding Capacity - Horizontal Wet (kg) | 20.4 |
| Holding Capacity - Horizontal Wet (lbf) | 45.0 |
| Holding Capacity - Vertical Lift (kg) | 74.4 |
| Holding Capacity - Vertical Lift (lbf) | 164 |
| Weight (g) | 204.0 |
| Weight (oz) | 7.2 |
| Diameter (mm) | 139.7 |
| Diameter (in) | 5.500 |
| Material | Nitrile |
| Durometer | 45 (Red) |
| Mount | 3/8" NPT |
| Temperature Range | 15-59 Sec: -20° to 250°F (-29° to 121°C) 1-5 Min: 15° to 180°C (-9° to 82°C) |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Shape | Round |
| Product Type | Traction |
| Cup Size | 5.50 in |
| Product Series Description | Nitrile Rubber |
