Brand: DESTACO

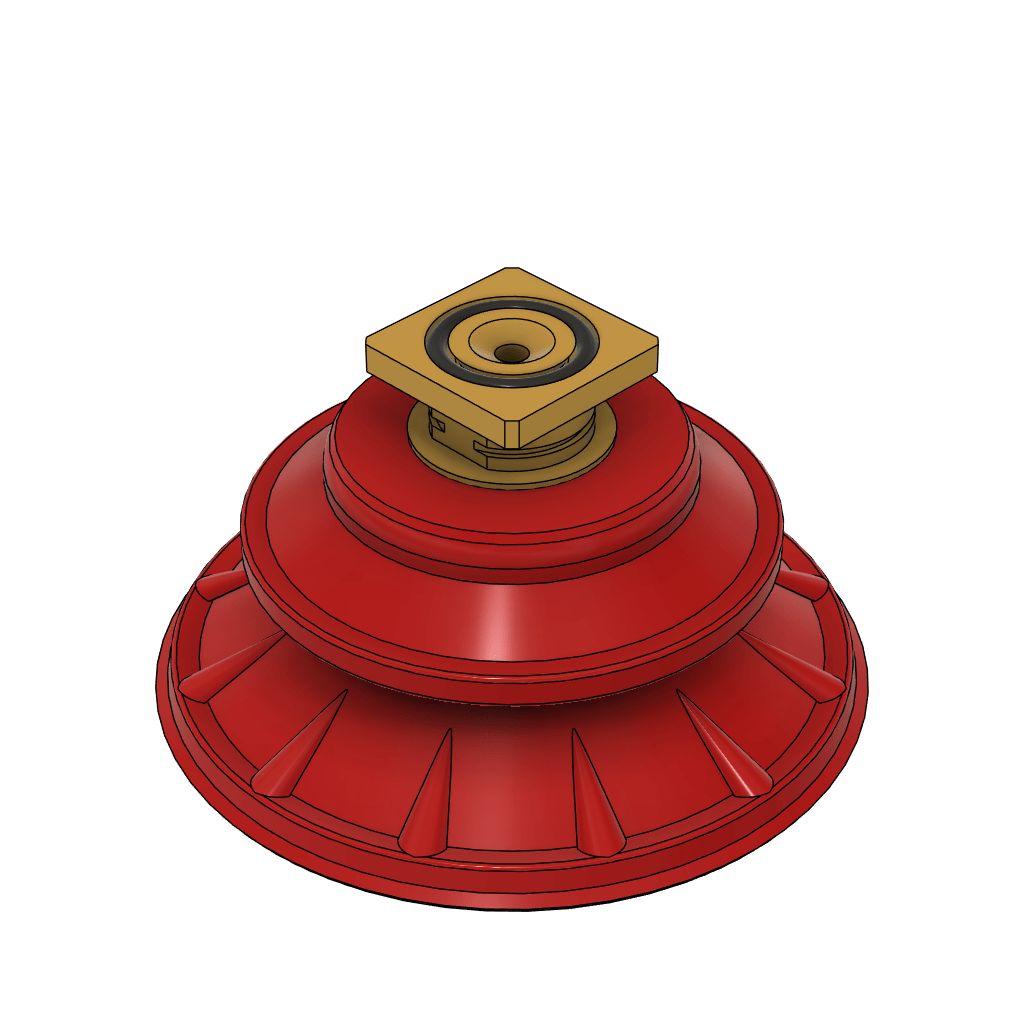

DESTACO CPI-45TC-C-45 TC/HT - ROUND TRACTION CUP TC 4.5in. C-MT RED
SKU: DE-STA-CO-CPI-45TC-C-45
MPN:
In-Stock: 4
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Transforming your high-speed automation process, the DESTACO CPI-45TC-C-45 TC/HT round traction cup with a 4.5 inch diameter and a strong grip is designed to keep your parts securely in place, even on oily or destacking surfaces. The flexible side walls and wide skirt with internal traction feet prevent any sliding, while the internal cleats provide an extra level of security. This traction cup can hold impressive weights both horizontally and vertically, making it a valuable addition to your automation toolkit. Plus, the nitrile durometer of 45 (in eye-catching red) and 1.25" square mount make it a durable and reliable choice. Upgrade your automation process with the DESTACO CPI-45TC-C-45 TC/HT today!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-45TC-C-45 TC/HT - ROUND TRACTION CUP TC 4.5in. C-MT RED
Product Details
Traction cups incorporate flexible side walls and a wide skirt with internal traction feet to prevent parts from sliding on high speed automation
- For oily surface or destacking applications
- Internal cleats hold parts more securely in high-speed applications
- Available in 45 or 60 shore "A" hardness durometers
| Holding Capacity - Horizontal Dry (kg) | 20.4 |
| Holding Capacity - Horizontal Dry (lbf) | 45.0 |
| Holding Capacity - Horizontal Wet (kg) | 13.6 |
| Holding Capacity - Horizontal Wet (lbf) | 30.0 |
| Holding Capacity - Vertical Lift (kg) | 46.7 |
| Holding Capacity - Vertical Lift (lbf) | 103 |
| Weight (g) | 125.0 |
| Weight (oz) | 4.4 |
| Diameter (mm) | 114.3 |
| Diameter (in) | 4.500 |
| Material | Nitrile |
| Durometer | 45 (Red) |
| Mount | 1.25" Square |
| Temperature Range | 15-59 Sec: -20° to 250°F (-29° to 121°C) 1-5 Min: 15° to 180°C (-9° to 82°C) |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Shape | Round |
| Product Type | Traction |
| Cup Size | 4.50 in |
| Product Series Description | Nitrile Rubber |
