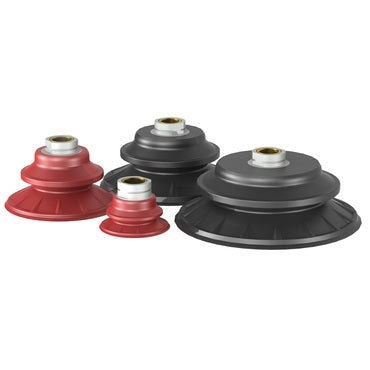

DESTACO CPI-45TC-B-45 TC/HT - ROUND TRACTION CUP TC 4.5in. B-MT RED

Brand: DESTACO

DESTACO CPI-45TC-B-45 TC/HT - ROUND TRACTION CUP TC 4.5in. B-MT RED

SKU: DE-STA-CO-CPI-45TC-B-45
MPN: CPI-45TC-B-45

  • $36.12
    Unit price per
  • Save $4.17
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

The DESTACO CPI-45TC-B-45 TC/HT is a reliable and versatile round traction cup that offers flexible side walls and a wide skirt with internal traction feet to prevent sliding on high-speed automation. Its internal cleats provide exceptional grip for both oily surfaces and destacking applications, making it the perfect choice for various needs. Horizontal dry holding capacity of 20.4 kg (45.0 lbf), horizontal wet holding capacity of 13.6 kg (30.0 lbf), and vertical lift holding capacity of 46.7 kg (103 lbf) make this traction cup a powerful tool. Measuring 125.0 g (4.4 oz) in weight and with a diameter of 114.3 mm (4.500 in), it is lightweight and compact. Made of nitrile with a durometer of 45 (red).

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO CPI-45TC-B-45 TC/HT - ROUND TRACTION CUP TC 4.5in. B-MT RED

Product Details

Traction cups incorporate flexible side walls and a wide skirt with internal traction feet to prevent parts from sliding on high speed automation

  • For oily surface or destacking applications
  • Internal cleats hold parts more securely in high-speed applications
  • Available in 45 or 60 shore "A" hardness durometers
Holding Capacity - Horizontal Dry (kg) 20.4
Holding Capacity - Horizontal Dry (lbf) 45.0
Holding Capacity - Horizontal Wet (kg) 13.6
Holding Capacity - Horizontal Wet (lbf) 30.0
Holding Capacity - Vertical Lift (kg) 46.7
Holding Capacity - Vertical Lift (lbf) 103
Weight (g) 125.0
Weight (oz) 4.4
Diameter (mm) 114.3
Diameter (in) 4.500
Material Nitrile
Durometer 45 (Red)
Mount 3/8" NPT
Temperature Range 15-59 Sec: -20° to 250°F (-29° to 121°C)
1-5 Min: 15° to 180°C (-9° to 82°C)
Chemical Resistance Oil, water, grease, hydraulic fluid, alcohol
Shape Round
Product Type Traction
Cup Size 4.50 in
Product Series Description Nitrile Rubber
