Brand: DESTACO

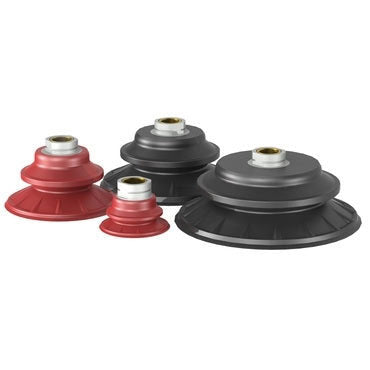

DESTACO CPI-35TC-C-45 TC/HT - ROUND TRACTION CUP TC 3.5in. C-MT RED
SKU: DE-STA-CO-CPI-35TC-C-45
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-35TC-C-45 TC/HT - ROUND TRACTION CUP TC 3.5in. C-MT RED is the perfect solution for preventing parts from sliding on high speed automation. With its flexible side walls and wide skirt, combined with internal cleats and traction feet, this traction cup holds parts securely in both dry and wet conditions, making it suitable for oily surface or destacking applications. It comes in 45 shore "A" hardness, and has a holding capacity of up to 66 lbf. With a weight of only 73.0g and a diameter of 88.9mm, this nitrile cup is lightweight and compact. Its 1.25" square mount makes it easy to attach to your equipment, making it the ideal choice for high-speed applications. Upgrade your automation process with the DESTACO CPI-35TC-C-45 TC/HT - ROUND TRACTION
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-35TC-C-45 TC/HT - ROUND TRACTION CUP TC 3.5in. C-MT RED
Product Details
Traction cups incorporate flexible side walls and a wide skirt with internal traction feet to prevent parts from sliding on high speed automation
- For oily surface or destacking applications
- Internal cleats hold parts more securely in high-speed applications
- Available in 45 or 60 shore "A" hardness durometers
| Holding Capacity - Horizontal Dry (kg) | 13.6 |
| Holding Capacity - Horizontal Dry (lbf) | 30.0 |
| Holding Capacity - Horizontal Wet (kg) | 9.1 |
| Holding Capacity - Horizontal Wet (lbf) | 20.0 |
| Holding Capacity - Vertical Lift (kg) | 29.9 |
| Holding Capacity - Vertical Lift (lbf) | 66 |
| Weight (g) | 73.0 |
| Weight (oz) | 2.6 |
| Diameter (mm) | 88.9 |
| Diameter (in) | 3.500 |
| Material | Nitrile |
| Durometer | 45 (Red) |
| Mount | 1.25" Square |
| Temperature Range | 15-59 Sec: -20° to 250°F (-29° to 121°C) 1-5 Min: 15° to 180°C (-9° to 82°C) |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Shape | Round |
| Product Type | Traction |
| Cup Size | 3.50 in |
| Product Series Description | Nitrile Rubber |
