Brand: DESTACO

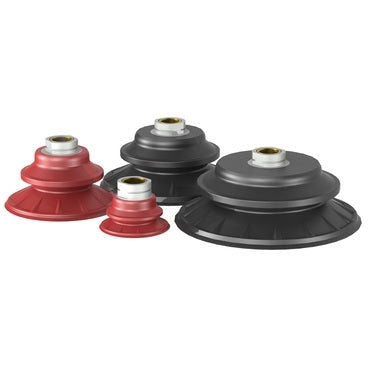

DESTACO CPI-115HT-B-60 TC/HT - ROUND TRACTION CUP TC 115MM G3/8 MT BLK
SKU: DE-STA-CO-CPI-115HT-B-60
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-115HT-B-60 TC/HT - ROUND TRACTION CUP TC 115MM G3/8 MT BLK is the ultimate solution for high-speed automation applications. With flexible side walls and a wide skirt featuring internal traction feet, parts will never slide on oily surfaces or during destacking. The internal cleats provide even more security for holding parts in place at high speeds. This versatile cup has a horizontal dry holding capacity of 20.4kg (45.0lbf) and a horizontal wet holding capacity of 13.6kg (30.0lbf). For vertical lifting, this cup can hold up to 46.7kg (103lbf). Made of durable nitrile material with a 60 shore "A" black durometer, this cup can handle any task.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-115HT-B-60 TC/HT - ROUND TRACTION CUP TC 115MM G3/8 MT BLK
Product Details
Traction cups incorporate flexible side walls and a wide skirt with internal traction feet to prevent parts from sliding on high speed automation
- For oily surface or destacking applications
- Internal cleats hold parts more securely in high-speed applications
- Available in 45 or 60 shore "A" hardness durometers
| Holding Capacity - Horizontal Dry (kg) | 20.4 |
| Holding Capacity - Horizontal Dry (lbf) | 45.0 |
| Holding Capacity - Horizontal Wet (kg) | 13.6 |
| Holding Capacity - Horizontal Wet (lbf) | 30.0 |
| Holding Capacity - Vertical Lift (kg) | 46.7 |
| Holding Capacity - Vertical Lift (lbf) | 103 |
| Weight (g) | 125.0 |
| Weight (oz) | 4.4 |
| Diameter (mm) | 114.3 |
| Diameter (in) | 4.500 |
| Material | Nitrile |
| Durometer | 60 (Black) |
| Mount | 3/8 G |
| Temperature Range | 15-59 Sec: -20° to 250°F (-29° to 121°C) 1-5 Min: 15° to 180°C (-9° to 82°C) |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Shape | Round |
| Product Type | Traction |
| Cup Size | 115 mm |
| Product Series Description | Nitrile Rubber |
