Brand: DESTACO

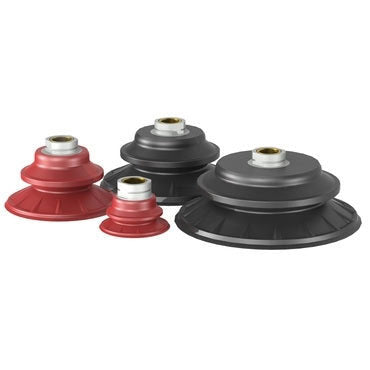

DESTACO CPI-115HT-B-45 CUP 45TC 45 DURO W/502-3819 INS
SKU: DE-STA-CO-CPI-115HT-B-45
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Enhance your high-speed automation process with DESTACO CPI-115HT-B-45 CUP 45TC 45 DURO W/502-3819 INS! These traction cups feature flexible side walls and a wide skirt with internal traction feet to securely hold parts in place. Designed for oily surfaces and destacking applications, these cups come in 45 (Red) durometer, ensuring a strong grip. With impressive holding capacities in both dry and wet conditions, these cups are a must-have for vertical and horizontal lifting. Trust in the durable and reliable material of nitrile and 3/8 G mount for lasting performance. Revolutionize your workholding and containment solutions with DESTACO!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-115HT-B-45 CUP 45TC 45 DURO W/502-3819 INS
Traction cups incorporate flexible side walls and a wide skirt with internal traction feet to prevent parts from sliding on high speed automation Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- For oily surface or destacking applications
- Internal cleats hold parts more securely in high-speed applications
- Available in 45 or 60 shore "A" hardness durometers
| Holding Capacity - Horizontal Dry (kg) | 20.4 |
| Holding Capacity - Horizontal Dry (lbf) | 45.0 |
| Holding Capacity - Horizontal Wet (kg) | 13.6 |
| Holding Capacity - Horizontal Wet (lbf) | 30.0 |
| Holding Capacity - Vertical Lift (kg) | 47 |
| Holding Capacity - Vertical Lift (lbf) | 103 |
| Weight (g) | 125.0 |
| Weight (oz) | 4.4 |
| Diameter (mm) | 114.3 |
| Diameter (in) | 4.500 |
| Material | Nitrile |
| Durometer | 45 (Red) |
| Mount | 3/8 G |
| Temperature Range | 15-59 Sec: -20‚° to 250‚°F (-29‚° to 121‚°C) 1-5 Min: 15‚° to 180‚°C (-9‚° to 82‚°C) |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Shape | Round |
| Product Type | Traction |
| Cup Size | 115 mm |
| Cup Size | 4.53 in |
| Product Series Description | Nitrile Rubber |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | vacuum cups |
