Brand: DESTACO

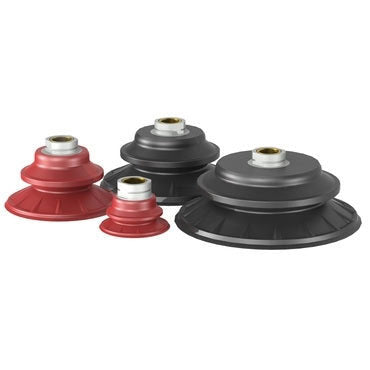

DESTACO CPI-50HT-B-45 TC/HT - ROUND TRACTION 50MM Traction Cup - G3/8 - 45DUR Red
SKU: DE-STA-CO-CPI-50HT-B-45
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Embrace the high-speed capabilities of the DESTACO CPI-50HT-B-45 TC/HT Traction Cup! This round 50mm cup features flexible side walls and a wide skirt with internal traction feet to ensure that parts stay in place during automation. With its internal cleats and 45 shore "A" hardness durometer, this cup provides exceptional holding power for both oily and destacking applications. Experience a holding capacity of up to 10.3kg in vertical lifts and 3.2kg in horizontal wet conditions. Made from durable Nitrile with a vibrant red shade, this cup is sure to make a statement in your workspace. Don't miss out on this game-changing product - available now in 3/8 G mount size!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-50HT-B-45 TC/HT - ROUND TRACTION 50MM Traction Cup - G3/8 - 45DUR Red
Product Details
Traction cups incorporate flexible side walls and a wide skirt with internal traction feet to prevent parts from sliding on high speed automation
- For oily surface or destacking applications
- Internal cleats hold parts more securely in high-speed applications
- Available in 45 or 60 shore "A" hardness durometers
Holding Capacity - Horizontal Dry (kg) | 3.9 |
Holding Capacity - Horizontal Dry (lbf) | 8.5 |
Holding Capacity - Horizontal Wet (kg) | 3.2 |
Holding Capacity - Horizontal Wet (lbf) | 7.0 |
Holding Capacity - Vertical Lift (kg) | 10.3 |
Holding Capacity - Vertical Lift (lbf) | 22.7 |
Weight (g) | 37.0 |
Weight (oz) | 1.3 |
Diameter (mm) | 52.3 |
Diameter (in) | 2.060 |
Material | Nitrile |
Durometer | 45 (Red) |
Mount | 3/8 G |
Temperature Range | 15-59 Sec: -20° to 250°F (-29° to 121°C) 1-5 Min: 15° to 180°C (-9° to 82°C) |
Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
Shape | Round |
Product Type | Traction |
Cup Size | 50 mm |
Product Series Description | Nitrile Rubber |
