Brand: HALDER
TAPERED SHAFT HUBS - 25050.0128
SKU: EH-25050.0128
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Tapered Shaft Hubs, with lock nut | d1=28 mm / d2=42 mm | 25050.0128Halder 25050.0128 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description

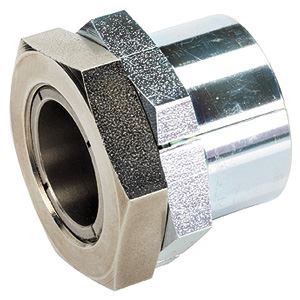

It is a self-centering and non-floating tapered shaft hub in corrosion-protected design with a hexagon nut and a lock nut.
The rotational accuracy is 0,03 mm.
By using tapered shaft hubs, all shaft-hub joints of machine elements such as sprocket wheels, gear wheels, belt pulleys, cams, levers etc. can be easily and efficiently established.
Material
External part
- Steel, zinc-plated by galvanization
Inner part
- Steel, nickel-plated
Nut
- Steel, nickel-plated
Assembly
The lock nut at the outer part facilitates locking of the shaft-hub joint if freely rotating shafts are involved. For mounting, a cresent wrench (thickness max. l2-l3) is used.
References
Mounting instructions, mounting arrangements and technical data will be found on the following pages.
