Brand: HALDER

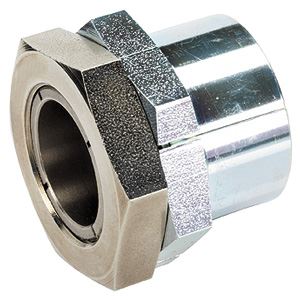

TAPERED SHAFT HUBS - 25050.0116

SKU: EH-25050.0116
MPN: 25050.0116

$56.92
Unit price per
Save $4.40

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $50 minimum for all Halder product orders*

Short Description

Tapered Shaft Hubs, with lock nut | d1=16 mm / d2=24 mm | 25050.0116
Halder 25050.0116 Data Sheet

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

It is a self-centering and non-floating tapered shaft hub in corrosion-protected design with a hexagon nut and a lock nut.

The rotational accuracy is 0,03 mm.

By using tapered shaft hubs, all shaft-hub joints of machine elements such as sprocket wheels, gear wheels, belt pulleys, cams, levers etc. can be easily and efficiently established.

Material

External part

Steel, zinc-plated by galvanization

Inner part

Steel, nickel-plated

Nut

Steel, nickel-plated

Assembly

The lock nut at the outer part facilitates locking of the shaft-hub joint if freely rotating shafts are involved. For mounting, a cresent wrench (thickness max. l2-l3) is used.

References

Mounting instructions, mounting arrangements and technical data will be found on the following pages.

Halder 25050.0116 Data Sheet
