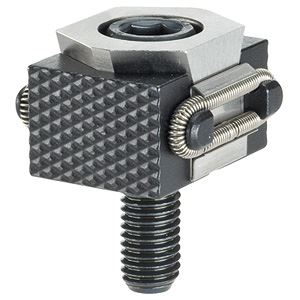

TAPER CLAMPING UNITS - 23250.0012

Brand: HALDER

TAPER CLAMPING UNITS - 23250.0012

SKU: EH-23250.0012
MPN: 23250.0012

  • $307.42
    Unit price per
  • Save $16.02
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


*Please note, there is a $50 minimum for all Halder product orders*

Short Description

Taper Clamping Units/single taper, ribbed clamping jaw | d1=M12 | 23250.0012
Halder 23250.0012 Data Sheet

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

Material

Body

  • Tool steel, hardened, bright

Screw

  • Heat-treated steel, tempered, quality 12.9

Spring

  • Spring steel wire

Clamping Jaws

  • Tool steel, hardened, blackened and ground

Assembly

Can be mounted in a threaded hole or with T-nuts for horizontal or vertical multiple clamping.

Operation

Inserting the socket head screw moves the two clamping chucks outwards and presses the workpieces against a stop. Using the double taper, an additional vertical clamping force will be achieved. Stroke of taper clamping units with M 5 = –’0,5,áM 8 = –’0,5, Má12 = –’1 and M 16 = –’1,5. Can be mounted in a threaded hole or with T-nuts for horizontal or vertical multiple clamping.

Accessories

T-Nuts EH 23010. have to be purchased separately.

Halder 23250.0012 Data Sheet
