Brand: Iscar

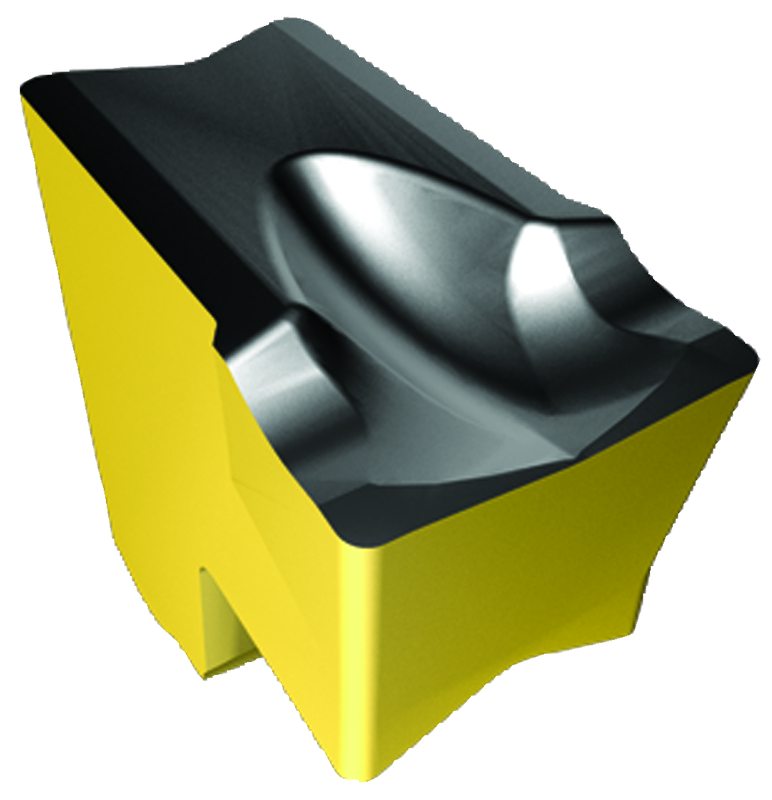

Iscar EH6011451 TAG N9.5C IC808
SKU: FTS-EH6011451
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 6011451 TAG N9.5C IC808Full Description
| Corner Radius (RE) | 0.0197" | Application | | Ext. Grooving | Parting | Side Slotting | Slitting | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0016" | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Cutting Edge Material | Carbide | Max. Grooving Feed (fg(max)) | 0.0315 "/rev |
| Coating | TiAlN+AlTiN+TiN | Min. Grooving Feed (fg(min)) | 0.0098 "/rev |
| Grade | IC808 | Tool Type | Parting & Grooving Inserts |
| Shape | 90° Rectangular | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
Family Description
First choice for the parting of bars, hard materials and tough applications. A positive rake, single cavity (except 7 & 12 mm with double cavity), negative land and shoulders, provides extra cutting-edge strength. Medium-to-high feeds.
The feed values for grade IC20 should be decreased by 50%.
